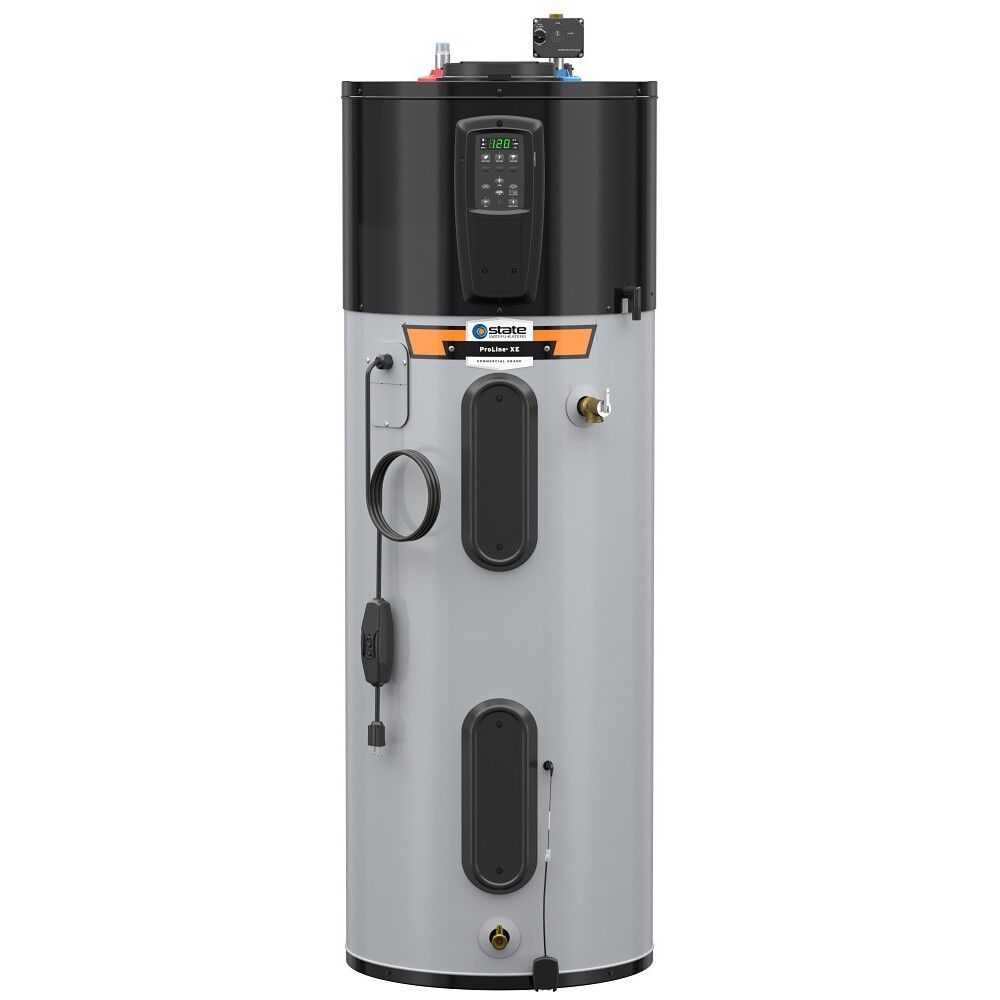

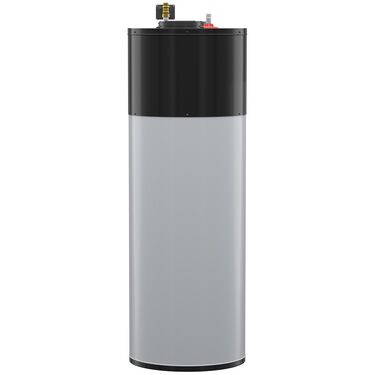

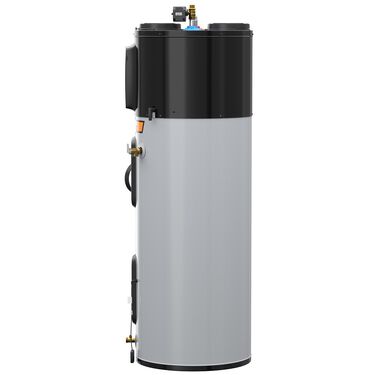

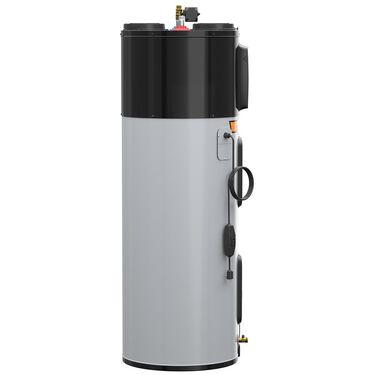

Premier® 120V Plug-In 80-Gallon Hybrid Electric Heat Pump with Automatic Cold Water Shut-Off & Alert Technology

Model HPVX-80-DHPT 200
Capacity (Gallons)

  • ENERGY STAR® certified with a 3.0 UEF rating
  • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity*
  • Easy Installation—Simply plugs into a standard 120 volt wall outlet Top water connections make it easy to replace an existing gas water heater
  • Product Details
    • ENERGY STAR® certified with a 3.0 UEF rating
    • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity*
    • Easy Installation—Simply plugs into a standard 120 volt wall outlet Top water connections make it easy to replace an existing gas water heater
    • Smart Leak Protection Technology—Smart technology detects, alerts, notifies, and protects your water heater in the event of a leak

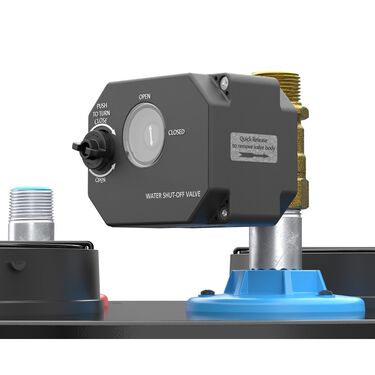

    • Smart Anti-Leak Technology—Automatically closes the valve on incoming cold water inlet when a leak is detected to block the cold water supply and reduce property damage
    • Whisper-Quiet Operation—Operation at 45 dBA (no accessory vibration isolation kit required)

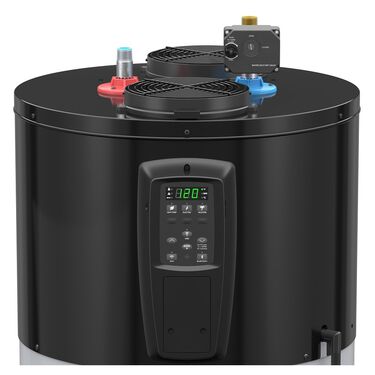

    • User-Friendly, Easy To Control—Digital control makes it simple to set to preferred water temperature and operating modes. Integrated iCOMM™ connectivity allows control through a free downloadable app
    • Smart Energy Savings—Allows for participation in utility demand response programs with the equipped CTA-2045-A (AC) utility communication port (participation optional)
    • Eco-Friendly—Utilizes R-513A refrigerant with a 56% lower global warming potential than the standard R-134a refrigerant used in other heat pump water heaters
    • Backup Water Heating System—Two water heating elements provide hot water if the heat pump is unable to operate

    • The Premier® 120V Plug-In Hybrid Electric heat pump water heater from State makes it easier than ever for consumers to electrify to an energy-efficient option to save money on their utility bills. These models plug into a standard wall outlet for easy installation. Top water connections make it easy to replace an existing gas water heater. The Premier® 120V has smaller room size requirements than other heat pump water heaters and integrated duct adapters for installation in confined spaces.

      This water heater includes leak protection features for added peace of mind. The smart sensor can alert the user in the event of a leak and the included automatic water shutoff valve will stop additional water from flowing into the water heater. Plus with integrated iCOMM™ smart connectivity the user can get immediate notifications through the free State app.

      The heat pump provides high efficiency water heating which can save homeowners up to $118 on utility bills* compared to a gas water heater. As an ENERGY STAR® certified water heater, it also qualifies for many federal, state and local utility rebates for even more savings.

      *Comparing 80-gallon Premier 120V heat pump against pre-2015 similarly-sized standard gas water heater using DOE EF to UEF conversion rates $0.14 per kWh electricity and $1.21 per therm of natural gas.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    82 Gallons
    UEF
    3
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    93 Gallons
    ASME Certified
    No
    NEEA Certified
    true
    Amperes
    9.38
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    46.50
    Installation Type
    INDOOR
    Max Wattage
    900
    Number of Elements
    2
    Shipping Height
    78
    Shipping Length
    32
    Shipping Width
    28.25
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    72"
    Diameter
    26.5"
    Width
    26.5"
    Shipping Weight
    307lbs
