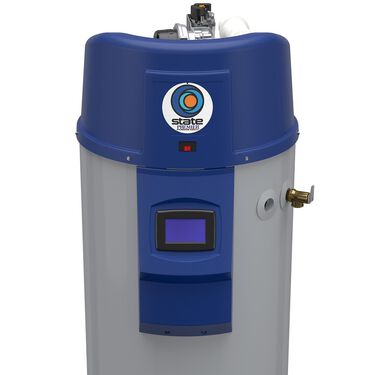

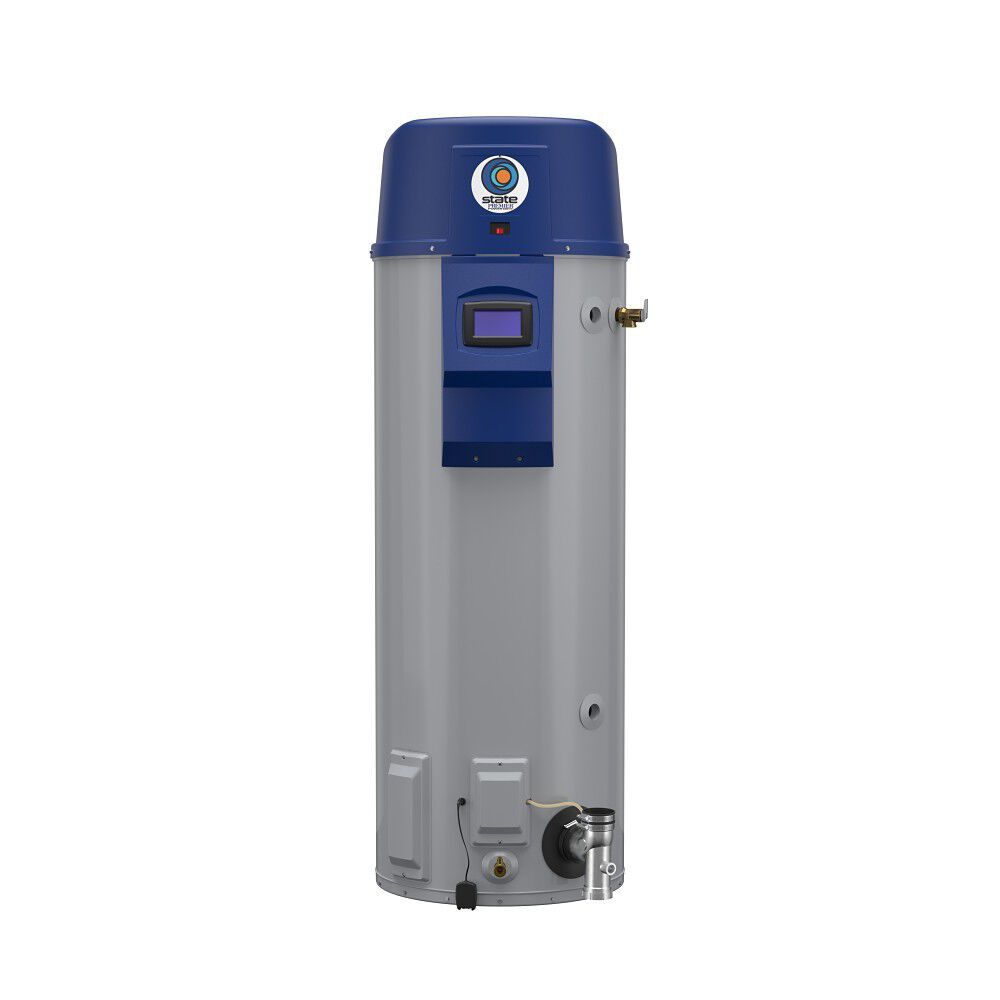

Force™ 90+ Power Direct Vent

Model SHE-50-100-ME 400
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's

  • ENERGY STAR® certified
  • Operates at 96% thermal efficiency
  • AiQ™ Adaptive Gas Control—Automatically adjusts to fuel qualities or abnormalities
  • Force™ 90+ Power Direct Vent
    Model SHE-50-100-ME 400
    Product Details
    • ENERGY STAR® certified
    • Operates at 96% thermal efficiency
    • AiQ™ Adaptive Gas Control—Automatically adjusts to fuel qualities or abnormalities
    • Helical Internal Heat Exchanger—Maximizes heat transfer by keeping hot combustion gases in the tank longer

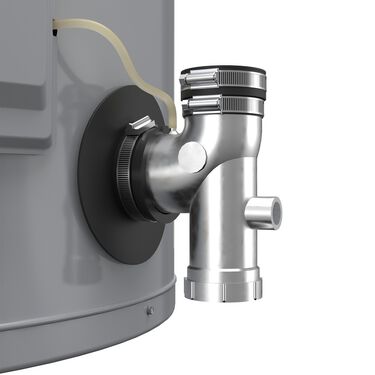

    • Power Direct Vent Design—Allows flexible installation with vertical and horizontal venting options
    • Stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system help protect the tank from the corrosive effects of water and extend the life of the water heater
    • Flexible Venting Options—Vent with PVC, CPVC, or polypropylene pipes
    • Ultra-Low NOx Gas Burner—Complies with strict environmental standards, ensuring eco-friendly operation

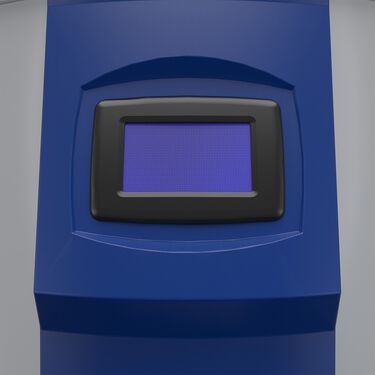

    • Advanced Electronic Control—LCD touchscreen display with integral diagnostics for easy operation
    • Includes a 3-year limited tank warranty and 1-year limited parts warranty for peace of mind

    • The Force™ 90+ Power Direct Vent Commercial Gas Water Heater is the ultimate solution for commercial applications needing high-performance, energy-efficient water heating. With an impressive 96% thermal efficiency, its advanced design saves on operating costs while delivering exceptional hot water output. Its innovative helical internal heat exchanger maximizes heat transfer, ensuring optimal performance and reliability. The Force™ 90+ is equipped with the AiQ™ Adaptive Gas Control system, which intelligently adjusts to varying fuel qualities and abnormalities and can switch from natural gas to liquid propane via the touchscreen. Its ultra-low NOx burner complies with strict environmental standards, making it an eco-friendly choice for modern commercial applications.

      The Force™ 90+ features a Blue Diamond® glass coating for superior corrosion resistance and a powered anode for extended tank life. Its power direct vent design allows for flexible installation with both vertical and horizontal venting options, using PVC, CPVC, or polypropylene pipes. The side-mounted hot and cold recirculating taps make it ideal for combination space heating and water heating applications. Certified to meet rigorous industry standards, including CSA and ASME ratings, the Force™ 90+ is backed by a 3-year limited tank warranty, ensuring peace of mind for commercial users.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    49.2 Gallons
    Thermal Efficiency
    96%
    Maximum BTUs
    100,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years

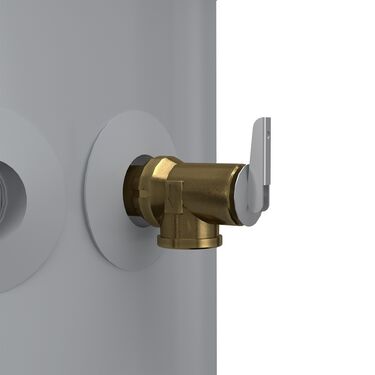

    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Fuel Source
    MULTIPLE
    Height to T&P
    49.25
    Installation Type
    INDOOR
    Minimum BTUs
    100,000
    Application
    COMMERCIAL
    Shipping Height
    78.38
    Shipping Length
    31.25
    Shipping Width
    28.5
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    66.75"
    Diameter
    22"
    Shipping Weight
    256 lbs
    Vent Type
    Power Direct Vent
    Height to Gas Valve
    65"
