Product Details
- Steady Hot Water—Delivers 43 gallons of hot water in the first hour
- Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
- Compact Design—Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
- Convenient Connection Points—Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
- Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
- Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
- Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
- Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
- Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
- Peace of Mind—6-year limited tank and parts warranty for added peace of mind

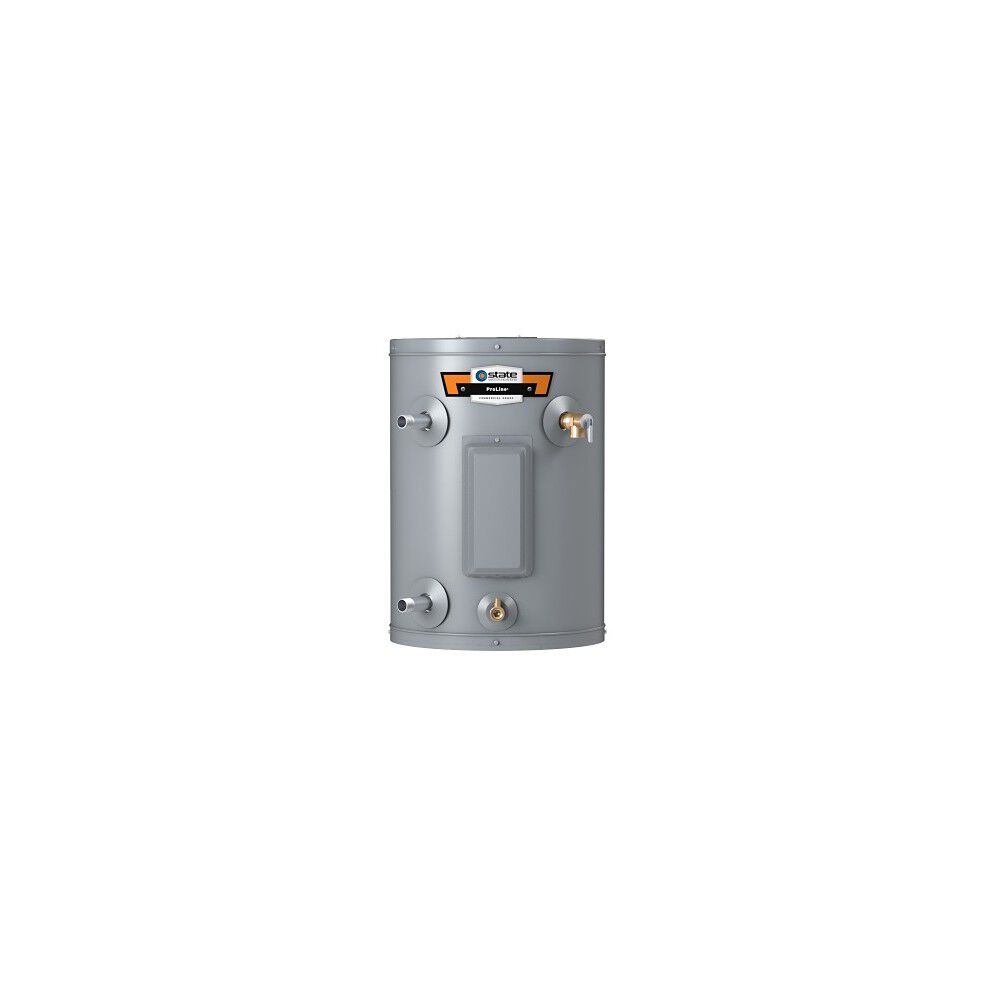

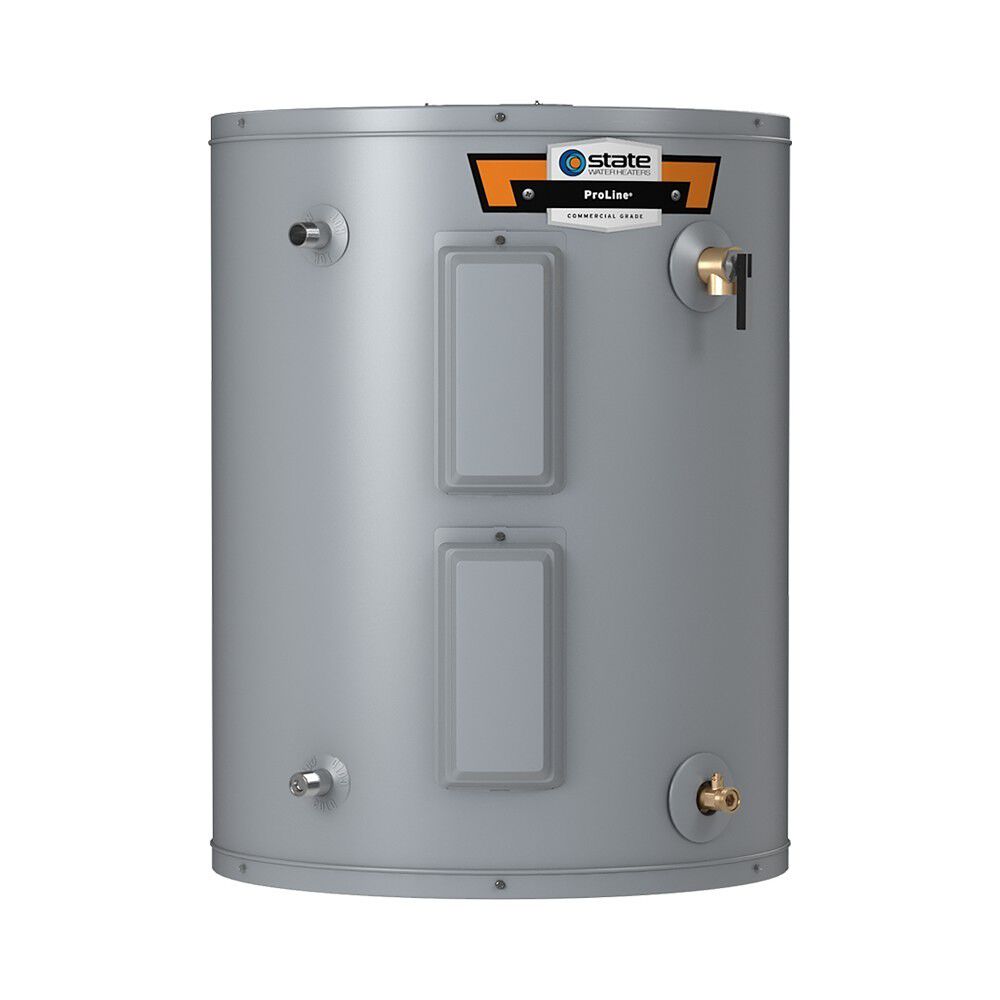

The ProLine® Lowboy electric water heater with side water connections features a small footprint and is the ideal choice where installation space is limited, such as under counters and in crawl spaces.
The EN6-30-DOMS has a 28-gallon (nominal) tank and delivers a first hour rating of 43 gallons at a Uniform Energy Factor of 0.91. The sacrificial anode helps protect the tank from the corrosive effects of water, and the water heater includes a 6-year limited tank warranty.
State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Specifications
Tech Specs
Nominal Gallon Capacity
28 Gallons
Rated Storage Volume
26 Gallons
UEF
0.91
Power Source
ELECTRIC
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
Water Connection Location
SIDE
Water Connection Size
0.75"
First Hour Rating
43 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Height to T&P
21.75
Installation Type
INDOOR
Max Wattage
4,500
Number of Elements
2
Application
RESIDENTIAL
Shipping Height
34.69
Shipping Length
28.25
Shipping Width
25.13
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Height
31.25"
Diameter
24"
Width
24"
Shipping Weight
115lbs
