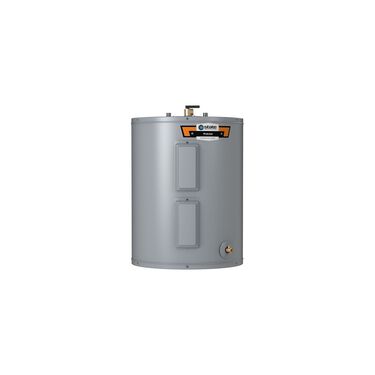

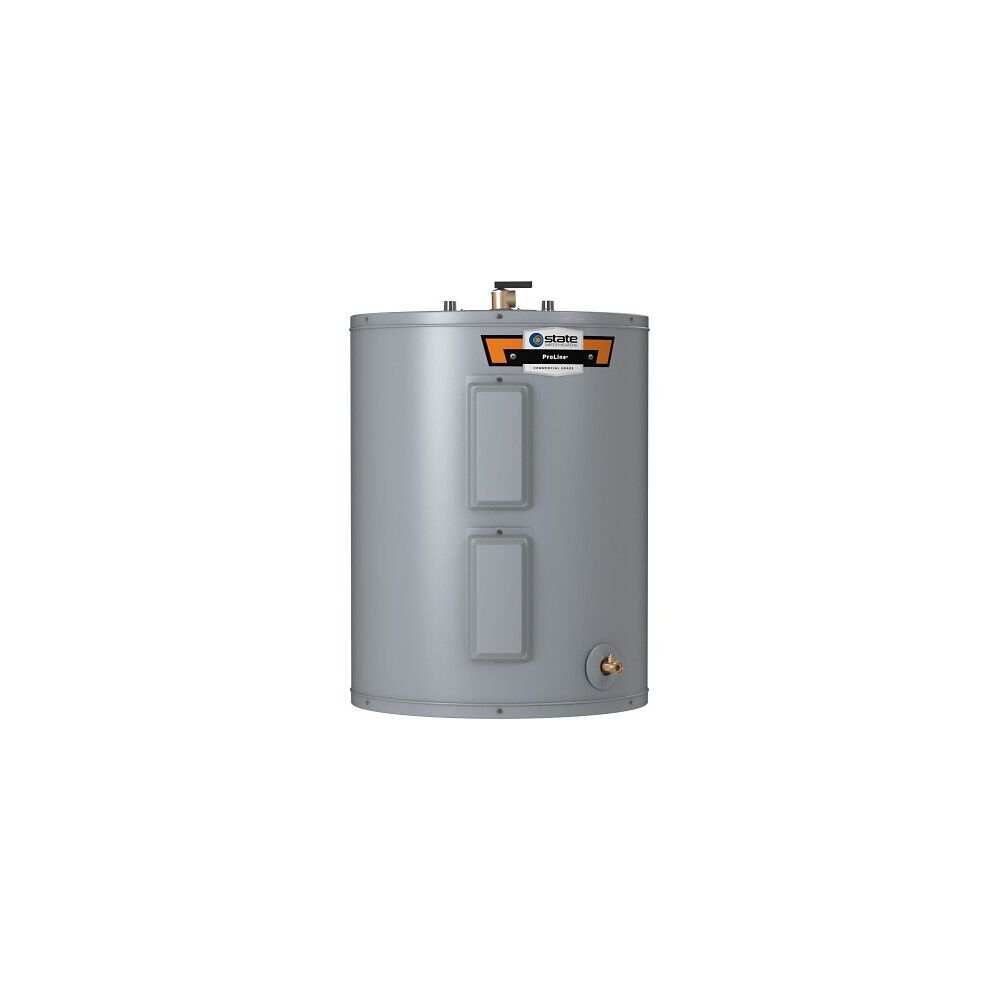

ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater

Model EN6-40-DOLBSW 110
4 out of 5 Customer Rating
ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater is rated 4.6 out of 5 by 82.
  • y_2025, m_9, d_16, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_22, tr_60
  • loc_en_US, sid_en6-40-dolbsw-110, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 38ms
  • reviews, product
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • Steady Hot Water—Delivers 38 gallons of hot water in the first hour
  • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Compact Design—Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces

    • ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater
    Model EN6-40-DOLBSW 110
    4 out of 5 Customer Rating
    ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater is rated 4.6 out of 5 by 82.
    • y_2025, m_9, d_16, h_9
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_1, bvpage1
    • co_hasreviews, tv_22, tr_60
    • loc_en_US, sid_en6-40-dolbsw-110, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 38ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Steady Hot Water—Delivers 38 gallons of hot water in the first hour
    • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Compact Design—Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
    • Compact Design—Lowboy design with top connections is ideal for tight spaces or low height clearance
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The ProLine® Lowboy Electric water heater with top water connections is the reliable choice when you want to maximize hot water output and energy savings. The EN6-40-DOLBSW incorporates a 38-gallon (nominal) tank and dual 4,500-watt elements to deliver a first hour rating of 38 gallons at a highly efficient 0.90 Uniform Energy Factor rating.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss to optimize energy savings.

      This ProLine® water heater features State's superior commercial-grade tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. The EN6-40-DOLBSW includes a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    38 Gallons
    Rated Storage Volume
    35 Gallons
    UEF
    0.9
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    38 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Height to T&P
    24.00
    Installation Type
    INDOOR
    Max Wattage
    3,800
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    35.69
    Shipping Length
    27
    Shipping Width
    24
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    32"
    Diameter
    23"
    Width
    23"
    Shipping Weight
    118 lbs
    Maintenance & Troubleshooting
    Maintenance

    Electric - Adjusting the Thermostat

    Electric - Checking and Replacing Lower Heating Element

    Electric - Checking and Replacing Upper Heating Element

    Electric - Not Enough Hot Water

    Electric - Replacing the Lower Thermostat

    Electric - Replacing the Upper Thermostat

    Troubleshooting

    Electric - No Hot Water

    Electric - Tripped ECO

    Marketing Videos
    Electric - Application and Installation
    Electric - Features and Benefits
    Electric - How It Works
    All Reviews for ProLine® Lowboy Top-Connect (110 series)
    Rated 5 out of 5 by from Water heater Nice product and work pretty good.Thank you for good product
    Date published: 2025-06-14
    Rated 5 out of 5 by from Good features Very happy I bought this product. Has good features works well.
    Date published: 2025-04-21
    Rated 5 out of 5 by from New buyer I just had this installed four days ago. So far, so good.
    Date published: 2025-03-28
    Rated 5 out of 5 by from Good water heater by today's standards This is a replacement of my other State Water heater that I bought 7 or 8 years ago. It holds 2 gallons more and is shorter than the other. I purchased this one at a plumbing supply as opposed to the last one which was purchased at Home Depot and had problems from the start which were never corrected, and it died a premature death due lack of maintenance and repair. My husband was to do the maintenance but got too sick to take care of it; never mentioned it to me; and, since it was never on m y radar, it never got done
    Date published: 2024-06-20
    Rated 5 out of 5 by from Replacement for 30 year plus state water heaters Thought it was time to replace the 2) 40 gallon heaters after more than 30 years of service. I was happy to find a local plumbing supply house to purchase the same heaters that I installed when I built my house in 1992. On well water and hard water too, just replaced a few elements along the way. Comparing the the quality of the new heaters, they have upped the game, 2 anode rods and a brass 1/4 turn drain valve, big box stores don’t carry this quality line and the price was cheaper than the low end heaters that they sell. Hoping for another 30+ years.
    Date published: 2024-03-27
    Rated 5 out of 5 by from Stay with a winner I replaced a state water heater with this new state water heater. The one I replaced was a 1979 model, 45 years old, didn't leak quit heating and couldn't loosen elements to replace so replaced heater.
    Date published: 2024-01-21
    Rated 5 out of 5 by from We have had this only 2 days. only installed 1 day ago but so far we are very happy.
    Date published: 2023-12-29
    Rated 5 out of 5 by from Beautiful and efficient Couldn’t be happier with both the installation and the quality craftsmanship of the product.
    Date published: 2023-10-05
