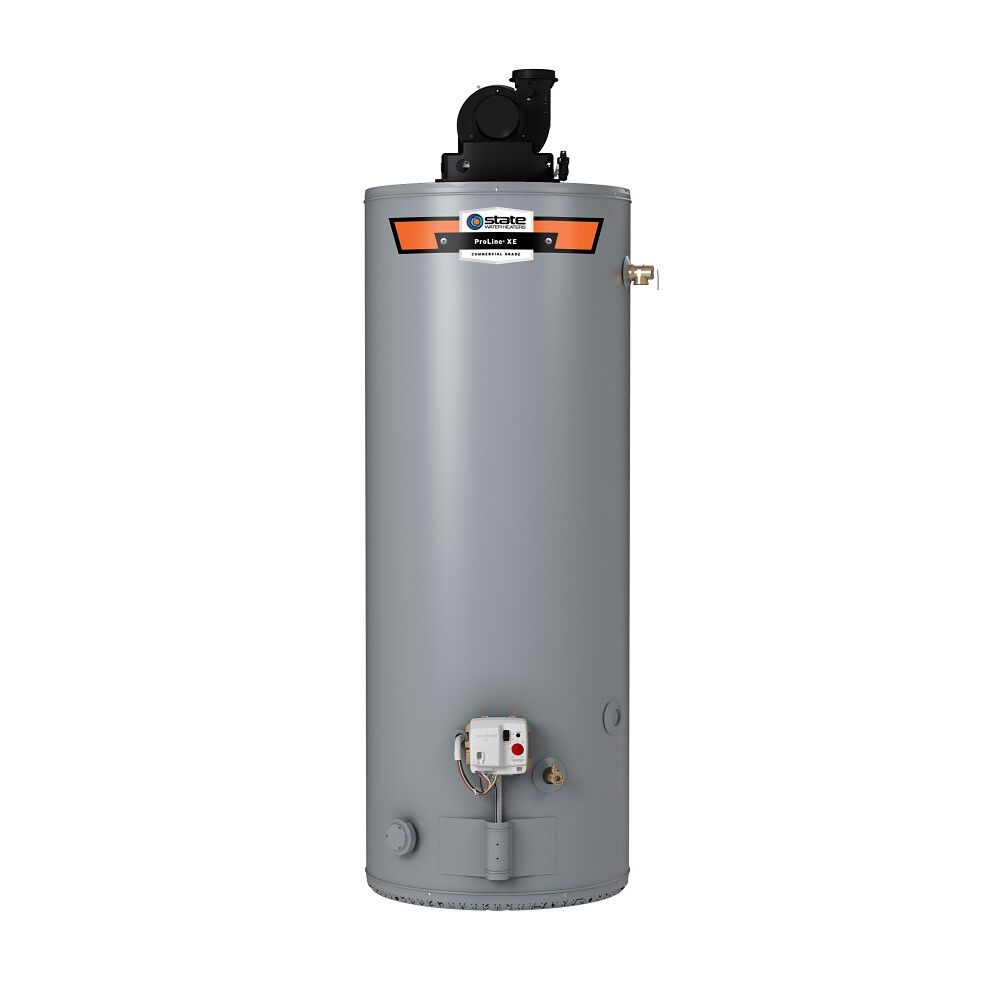

ProLine® XE Low NOx 40-Gallon Power Vent Liquid Propane Water Heater

Model GS6-40-HRVIT 201
4.8 out of 5 Customer Rating
ProLine® XE Low NOx 40-Gallon Power Vent Liquid Propane Water Heater is rated 4.6 out of 5 by 269.
  • y_2026, m_4, d_18, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
  • cp_9, bvpage2n
  • co_hasreviews, tv_44, tr_225
  • loc_en_US, sid_gs6-40-hrvit-201, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 55ms
  • reviews, product
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Meets Your Hot Water Demands—Delivers an 87-gallon first hour rating
  • Energy Efficient—50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements

    •
    ProLine® XE Low NOx 40-Gallon Power Vent Liquid Propane Water Heater
    Model GS6-40-HRVIT 201
    4.8 out of 5 Customer Rating
    ProLine® XE Low NOx 40-Gallon Power Vent Liquid Propane Water Heater is rated 4.6 out of 5 by 269.
    • y_2026, m_4, d_18, h_8
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
    • cp_9, bvpage2n
    • co_hasreviews, tv_44, tr_225
    • loc_en_US, sid_gs6-40-hrvit-201, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 55ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    27.6 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    3.5 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.5 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    63 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $691/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Meets Your Hot Water Demands—Delivers an 87-gallon first hour rating
    • Energy Efficient—50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The ProLine® XE Power Vent Liquid Propane Water Heater maximizes efficiency and provides flexible installation options by using an exclusive 3 position rotatable blower outlet. The GS6-40-HRVIT features a 40-gallon (nominal) tank and a 50,000 BTU propane burner to deliver a first-hour rating of 87 gallons and a recovery rate of 55.9 gallons per hour.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.

      The GS6-40-HRVIT features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.7
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Low NOx
    First Hour Rating
    87 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    71
    Shipping Length
    29.25
    Shipping Width
    21.63
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59.5"
    Diameter
    20"
    Shipping Weight
    176 lbs
    Vent Type
    Power Vent
    All Reviews for ProLine® XE Power Vent (200 series)
    Rated 2 out of 5 by from Failed much earlier than expected We installed this water heater in July of 2017 and it failed in March of 2021. The input water to this tank was pre-heated by a boiler and stored in a SuperStor tank, so it only had to heat water from 105 degrees up to full temperature. We thought this would mean a very long life. Needless to say, we see this as a significant failure.
    Date published: 2021-03-18
    Rated 2 out of 5 by from My previous water heater lasted 20+ years. I bought this only two days ago after my previous water heater finally gave out. It lasted over 20 years. I cannot comment yet on what I think of this one. I also felt the cost of the tank and installation was pretty high. I cannot rate this product since I've only had it for 2 days.
    Date published: 2020-05-06
    Rated 1 out of 5 by from Review of last water heater Had a State water heater installed 6 years ago. It blew up 2 weeks after the warranty expired. Called customer service twice and have not received a call back. I purchased another State water heater only because that is the brand my plumber uses and could install quickly. It went out on Christmas eve evening and we could get it installed 12/26/23.
    Date published: 2023-12-29
    Rated 1 out of 5 by from Only lasted 2.5 years Replaced unit in February 2021 under warranty. This one died July 8, 2023 but cannot be covered under warranty since it was a replacement. This is simply unreasonable. Two of the same units only lasted collectively 7.5 years. Now it will cost me over $2K and I have zero confidence in this brand so I cannot justify taking the chance. I will go with a different brand and hope it lasts longer than this junk! I hope to hear from corporate as I can provide absolute proof of date of professional installation and failure of product.
    Date published: 2023-09-21
    Rated 1 out of 5 by from GS6-50-YBVIS I bought two of these units in 2017, the 1st one failed in March 2021 after spending $1800 on a plumber to diagnose this unit on 6 occasions they finally gave me an RMA for a new unit with a $200 delivery charge and a $600 install. Two months later the second unit failed and finally got an RMA in August 2023 after spending $1200 on having a plumber work with their tech support to get the unit working. Its an additional $250 delivery charge with and $800 install. I would stay away from this company
    Date published: 2023-08-21
    Rated 1 out of 5 by from My 2nd one has failed in less than 4 years I have now had the 2nd one of these fail in the last 4 years. Both sprouted heavy leaks from the top of the tank making a huge mess. Even if this is under warranty I’m not so sure I want to chance a 3rd one failing and flooding my house! I’ve personally never had any other water heaters fail with heavy leaks from the tanks. I own a total of ten homes and the only other water heater issues I’ve had are bad heating elements, leaking safety valves etc. but never tank failures like with this rather expensive unit. At this time I do not trust State water heaters until I read that they have addressed their problems with their tanks. Fortunately there are other quality choices for tank water heaters.
    Date published: 2021-09-11
    Rated 1 out of 5 by from Failed... manufacturing defect, not age or misuse Bought a condo with this unit (SN 1343A019147) installed. Recently had a major gush of water leaking. When replaced, plumber found that there was no rust leak.. water was seeping from unit structure...and water was even in gas line. Cause: Manufacturing defect... a nipple in the internal structure was seated improperly and caused seeping of water internally, eventual tremendous rust buildup, and external leaking water from various unit seams. Caused lots of water damage my unit and neighbors unit. Of course because it's out of warranty, the company will do nothing...even for a manufacturing defect.
    Date published: 2021-05-29
