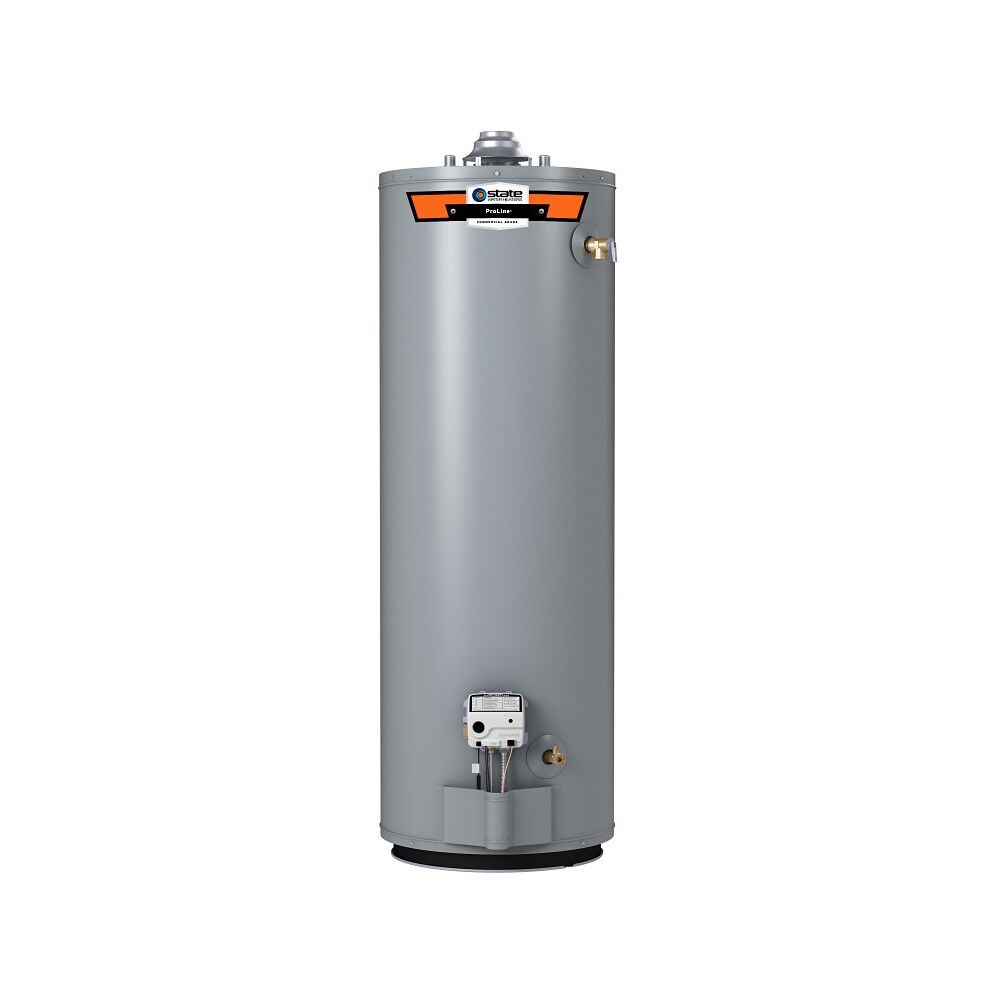

Select® 30-Gallon Gas Water Heater

Model GS6-30-OCT 400
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
Blanket
Select® 30-Gallon Gas Water Heater
Model GS6-30-OCT 400
Find a Local Pro
Find a Local Pro
Specifications
Tech Specs
Nominal Gallon Capacity
30 Gallons
Rated Storage Volume
29 Gallons
UEF
0.6
Thermal Efficiency
78%
Maximum BTUs
35,500
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
Water Connection Location
TOP
Water Connection Size
1"
First Hour Rating
69 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to T&P
51.25
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
61.56
Shipping Length
22.13
Shipping Width
19.13
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
61.5"
Diameter
18"
Shipping Weight
123 lbs
Height to Gas Valve
12.5"
Maintenance & Troubleshooting
Maintenance

Residential Series Atmospheric Vent Lighting the Pilot

Troubleshooting

Residential Series Atmospheric Vent Draft Test

Residential Series Atmospheric Vent No Hot Water

Residential Series Atmospheric Vent Status Code 1 Flash

Residential Series Atmospheric Vent Status Code 2 Flash

Residential Series Atmospheric Vent Status Code 4 Flash

Residential Series Atmospheric Vent Status Code 5 Flash

Residential Series Atmospheric Vent Status Code 7 Flash

Residential Series Atmospheric Vent Status Code 8 Flash

Residential Series Atmospheric Vent Status Code Light Continuous

Marketing Videos
Residential Series Atmospheric Vent Application and Installation
Residential Series Atmospheric Vent Features and Benefits
Residential Series Atmospheric Vent How It Works
Find a Replacement
Current Product
Option 2
Select® 30-Gallon Gas Water Heater
Adapt™ SC Standard Condensing 160,000 BTU Natural Gas Tankless Water Heater
GS6-30-OCT
STM-160M-N
current Product
option 1
Rebates up to $300 +
Rebates up to $300 +
Nominal Capacity
30 Gallons
1 Gallons
Rated Storage Volume
29 Gallons
Diameter
18"
Width
17.12"
Depth
24"
11.85"
Height
61.5"
32.46"
Shipping Weight
123lbs
93lbs
Power Source
GAS
GAS
Limited Tank Warranty
6 Years
0 Years
Limited Parts Warranty
6 Years
5 Years
Water Connection Location
TOP
BOTTOM
Water Connection Size
1"
0.75"
First Hour Rating
69 Gallons
Thermal Efficiency
78%
0%
