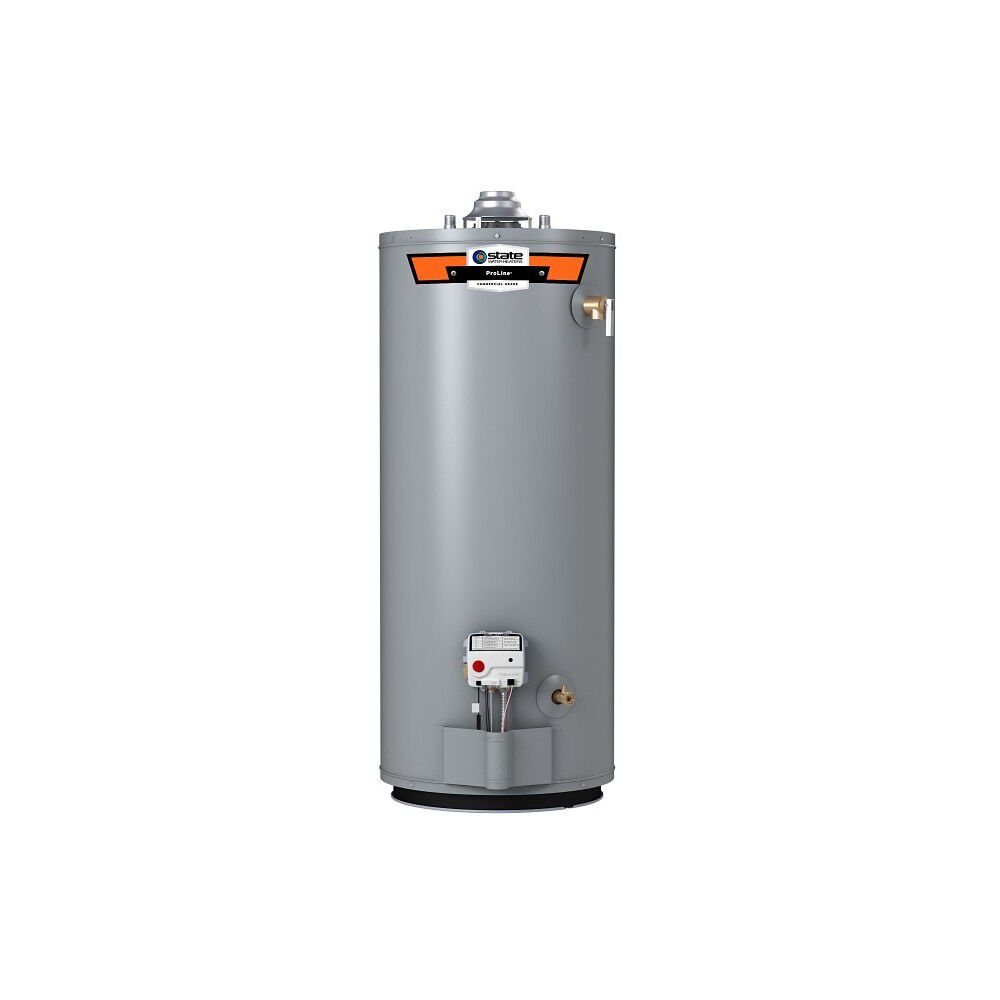

ProLine® Low NOx 40-Gallon Atmospheric Vent Short Liquid Propane Water Heater

Model GS6-40-BCS 401
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Fuel Source
Advanced Options
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Meets Your Hot Water Demands—Delivers a 67-gallon first hour rating
  • Energy Efficient—36,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements

    • Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    24.7 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    3.1 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.4 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    60 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $834/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Meets Your Hot Water Demands—Delivers a 67-gallon first hour rating
    • Energy Efficient—36,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
    • Easy-to-Use Controls—Intelligent electronic gas control provides precise temperature control and LED status indicator
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The ProLine® GS6-40-BCS 40-Gallon Atmospheric Vent Short Liquid Propane Water Heater is designed to deliver an economical performance that can lower your energy bills and provide long-lasting value.

      Featuring a 40-gallon (nominal) tank and a 36,000 BTU propane burner, the GS6-40-BCS Atmospheric Vent delivers a first hour rating of 67 gallons and a recovery rate of 41 gallons per hour. It carries a 6-year limited tank warranty and meets Low NOx emission requirements.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® water heater is designed with State’s advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and a self-cleaning dip tube—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.58
    Maximum BTUs
    36,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    67 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to Gas Valve
    12.50
    Height to T&P
    41.25
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    51.31
    Shipping Length
    26.13
    Shipping Width
    23.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    47.75"
    Diameter
    22"
    Shipping Weight
    135lbs
    Vent Type
    Atmospheric Vent
    Maintenance & Troubleshooting
    Maintenance

    Residential Series Atmospheric Vent Lighting the Pilot

    Troubleshooting

    Residential Series Atmospheric Vent Draft Test

    Residential Series Atmospheric Vent No Hot Water

    Residential Series Atmospheric Vent Status Code 1 Flash

    Residential Series Atmospheric Vent Status Code 2 Flash

    Residential Series Atmospheric Vent Status Code 4 Flash

    Residential Series Atmospheric Vent Status Code 5 Flash

    Residential Series Atmospheric Vent Status Code 7 Flash

    Residential Series Atmospheric Vent Status Code 8 Flash

    Residential Series Atmospheric Vent Status Code Light Continuous

    Marketing Videos
    Residential Series Atmospheric Vent Application and Installation
    Residential Series Atmospheric Vent Features and Benefits
    Residential Series Atmospheric Vent How It Works
