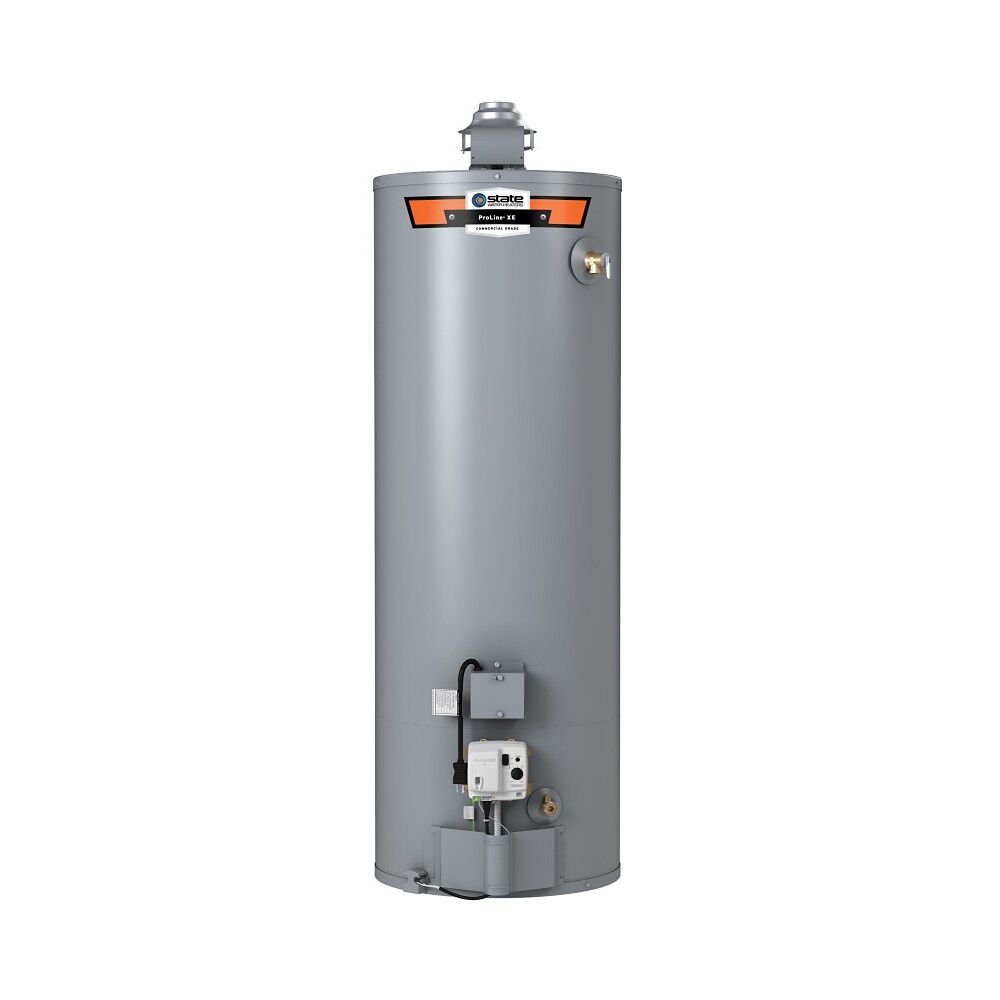

ProLine® XE Low NOx 40-Gallon High Efficiency Non-Condensing Flue Damper Liquid Propane Water Heater

Model GS6-40-HBFT 101
5 out of 5 Customer Rating
ProLine® XE Low NOx 40-Gallon High Efficiency Non-Condensing Flue Damper Liquid Propane Water Heater is rated 4.6 out of 5 by 7.
  • y_2025, m_9, d_18, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_6
  • loc_en_US, sid_gs6-40-hbft-101, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 80ms
  • reviews, product
Capacity (Gallons)
Fuel Source
Height Classification

  • Meets Your Hot Water Demands—Delivers a 70-gallon first hour rating
  • Energy Efficient - 36,000 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
  • Flue Damper Reduces Heat Loss—Powered flue damper design automatically opens and closes to reduce heat loss in standby mode

    • ProLine® XE Low NOx 40-Gallon High Efficiency Non-Condensing Flue Damper Liquid Propane Water Heater
    Model GS6-40-HBFT 101
    5 out of 5 Customer Rating
    ProLine® XE Low NOx 40-Gallon High Efficiency Non-Condensing Flue Damper Liquid Propane Water Heater is rated 4.6 out of 5 by 7.
    • y_2025, m_9, d_18, h_6
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_1, bvpage1
    • co_hasreviews, tv_1, tr_6
    • loc_en_US, sid_gs6-40-hbft-101, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 80ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Meets Your Hot Water Demands—Delivers a 70-gallon first hour rating
    • Energy Efficient - 36,000 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
    • Flue Damper Reduces Heat Loss—Powered flue damper design automatically opens and closes to reduce heat loss in standby mode
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The ProLine® XE 40-Gallon Atmospheric Vent Short Liquid Propane Water Heater uses an automatic flue damper and electronic gas control to deliver highly-optimized performance and greater efficiency. The flue damper automatically opens and closes to reduce heat loss in standby mode.

      The GS6-40-HBFT’s 40-gallon (nominal) tank and 36,000 BTU propane burner deliver a first hour rating of 70 gallons and a recovery rate of 42 gallons per hour. Intelligent control logic provides more precise temperature sensing and a faster heating response.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions by up to 33%, and environmental-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This Proline® XE water heater features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.64
    Maximum BTUs
    36,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    70 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to T&P
    51.75
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    64.25
    Shipping Length
    26.25
    Shipping Width
    21.25
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    64.25"
    Diameter
    20"
    Shipping Weight
    132 lbs
    Vent Type
    Atmospheric Vent
    Height to Gas Valve
    11"
    All Reviews for ProLine® XE Flue Damper (100 series)
    Rated 5 out of 5 by from 40gal. loved it loved the 40 gal and that is why I bought it had the other for ten years
    Date published: 2024-09-12
    Rated 5 out of 5 by from Great so far Bought it in 2010 and still going strong . Family of 5 . This is a work horse no doubt. . When it does go I’m getting same brand .
    Date published: 2023-06-18
    Rated 5 out of 5 by from Great Features, and efficient Easy to install, superior product, and efficient operation. Telling the difference already in 2 days.
    Date published: 2023-06-09
    Rated 5 out of 5 by from Gs640ybrt I bought this 6 mo ago and glad I did.And Iam Glad that I Did
    Date published: 2017-01-22
    Rated 5 out of 5 by from A Solid Step Up from a Basic Water Heater I had this installed by my plumber and am quite happy with the unit. Our previous unit was working great, but was 14 years old and I didn't want to push it and risk a problem. I did SO much research on high-efficiency, heat pump, condensing, tankless electric, tankless gas, and every time came back to a standard atmospheric vent 50 gallon tank. My first priority was to have high-efficiency to reduce my impact (this unit has an EF(energy factor) of 0.67), and my second priority was a reasonable cost. This unit cost me $1725 installed. It was $525 more expensive than the GS6-50-BRT that my plumber was going to install. While that is a well-reviewed unit, it is not Energy Star, and will cost about $40 more per year to operate. That means I will break even in 13 years, which I plan this unit to last for. I spoke with an online retailer about the price difference and they had it listed for $363 more, so maybe you can negotiate a better deal than my plumber did with his supplier. I feel that if I can break even over the life of the water heater and have less of an environmental impact, that is the right thing to do. The heat pump and condensing water heaters seemed like the most environmentally friendly option, but they end up with problems and some require regular maintenance. Plus the units alone are anywhere from $1500-$2500+. When this technology comes around this will be the way to go. Tankless seems over-rated, even though lots of friends of mine who have them really like them. An electric model would have used 3 40-amp circuits, which was out of the question. Gas models perform better anyway, but the cost of the unit alone plus the additional ventilation plumbing would have been way too expensive, and they require maintenance. It seems that these other types had too many bells and whistles for something to go wrong. And, in my gut I felt it would be smart to have 50 gallons of water should I need it in an emergency. The coolest thing about the GS6-50-YBFT is that it has a control mechanism at the top that will turn to close the flue to keep the heat in, and open up when it needs to vent.
    Date published: 2017-01-20
    Rated 3 out of 5 by from Best Water Heater Ever! Worked great till 6 years and less than 2 months after the 6-year factory warranty expired. Now pilot won't light and needs fixed
    Date published: 2021-04-08
