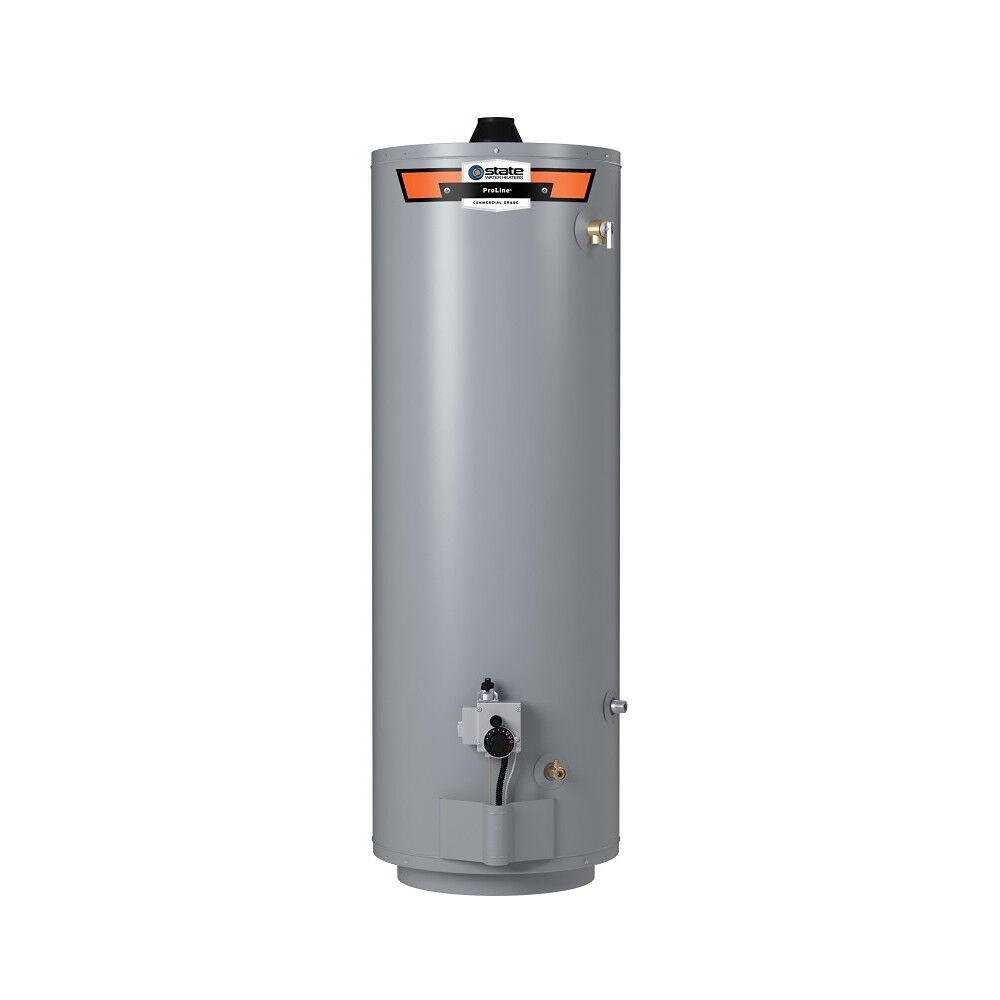

ProLine® Low NOx 50-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater

Model GS6-50-MDV 250
3.3 out of 5 Customer Rating
Capacity (Gallons)

  • Meets Your Hot Water Demands—Delivers a 67-gallon first hour rating
  • For Mobile Home Use—HUD compliant, approved for mobile homes/manufactured housing
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • Product Details
    • Meets Your Hot Water Demands—Delivers a 67-gallon first hour rating
    • For Mobile Home Use—HUD compliant, approved for mobile homes/manufactured housing
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Convertible for Natural Gas or Propane—Gas control convertible for natural and propane gas to meet manufactured housing installation flexibility needs
    • Air Intake From Outside—Direct vent models use bottom intake air vent to draw all combustion make-up air from outside the structure
    • 3/4" Connections—3/4" top water outlet connections and a 3/4" side inlet connections
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® 50-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater features a 50-gallon (nominal) tank and a 40,000 BTU capacity to deliver a first-hour rating of 67 gallons and a recovery rate of 39 gallons per hour with a 0.57 Uniform Energy Factor.

      The GS6-50-MDV features a flexible design with a side-mounted 3/4-in cold-water inlet to allow for ease of installation when the water supply originates below the structure. This model is convertible for propane and natural gas and complies with Hud Standards for Manufactured Housing Installation.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® water heater features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    47 Gallons
    UEF
    0.57
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    67 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    13.25
    Height to T&P
    50.50
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Mobile Home Compatible
    true
    Application
    RESIDENTIAL
    Shipping Height
    62.75
    Shipping Length
    27.19
    Shipping Width
    22.69
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    57.25"
    Diameter
    22"
    Shipping Weight
    159lbs
    Vent Type
    Direct Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® Low NOx 50-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater
    ProLine® XE Indoor 199,000 BTU Condensing Natural Gas Tankless Water Heater
    GS6-50-MDV
    GTS-540-NIH
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    50 Gallons
    Rated Storage Volume
    47 Gallons
    Diameter
    22"
    Width
    17.75"
    Depth
    26.5"
    11.25"
    Height
    57.25"
    23.63"
    Shipping Weight
    159lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    BOTTOM
    Water Connection Size
    0.75"
    First Hour Rating
    67 Gallons
    Thermal Efficiency
    0%
    0%
