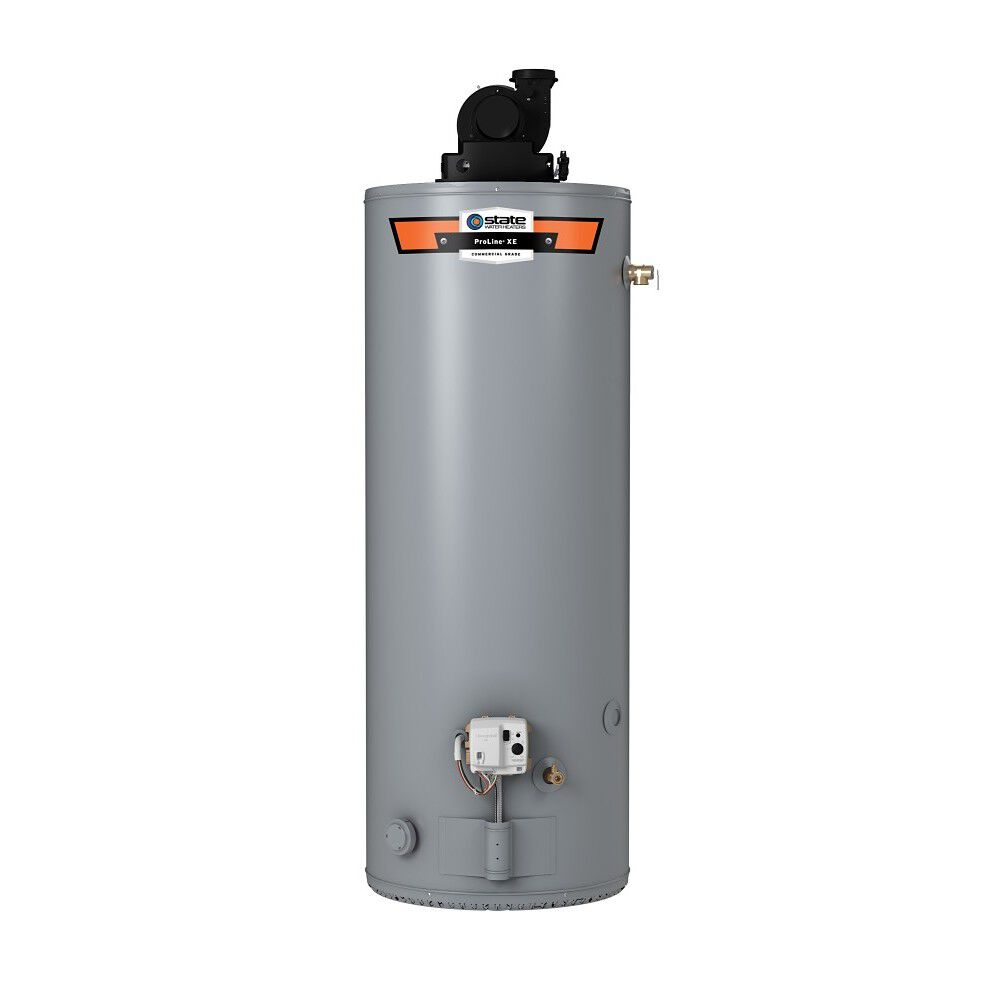

ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater

Model GS6-40-YBVIS 200
3.8 out of 5 Customer Rating
ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater is rated 4.6 out of 5 by 269.
  • y_2026, m_5, d_5, h_11
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
  • cp_7, bvpage2n
  • co_hasreviews, tv_44, tr_225
  • loc_en_US, sid_gs6-40-ybvis-200, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 58ms
  • reviews, product
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Meets Your Hot Water Demands—Delivers a 73-gallon first hour rating
  • Energy Efficient—40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements

    •
    ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater
    Model GS6-40-YBVIS 200
    3.8 out of 5 Customer Rating
    ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater is rated 4.6 out of 5 by 269.
    • y_2026, m_5, d_5, h_11
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
    • cp_7, bvpage2n
    • co_hasreviews, tv_44, tr_225
    • loc_en_US, sid_gs6-40-ybvis-200, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 58ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    25.8 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    3.2 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.4 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    61 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $279/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Meets Your Hot Water Demands—Delivers a 73-gallon first hour rating
    • Energy Efficient—40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The ProLine® XE Power Vent Natural Gas Water Heater maximizes efficiency and provides flexible installation options by using an exclusive 3 position rotatable blower outlet. The GS6-40-YBVIS features a 40-gallon (nominal) tank and a 40,000 BTU gas burner to deliver a first-hour rating of 73 gallons and a recovery rate of 44.7 gallons per hour.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.

      The GS6-40-YBVIS features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.67
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    73 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to T&P
    42.50
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    61
    Shipping Length
    31.63
    Shipping Width
    23.5
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    58.5"
    Diameter
    22"
    Shipping Weight
    174 lbs
    Vent Type
    Power Vent
    Height to Gas Valve
    13.25"
    Product Comparison
    Current Product
    Option 2
    ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater
    Adapt® SC Standard Condensing 180,000 BTU Natural Gas Tankless Water Heater
    GS6-40-YBVIS
    STM-180M-N
    current Product
    option 1
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    40 Gallons
    1 Gallons
    Rated Storage Volume
    38 Gallons
    Diameter
    22"
    Width
    17.12"
    Depth
    29.75"
    11.85"
    Height
    58.5"
    32.46"
    Shipping Weight
    174lbs
    93lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    BOTTOM
    Water Connection Size
    0.75"
    0.75"
    First Hour Rating
    73 Gallons
    Thermal Efficiency
    0%
    0%
    All Reviews for ProLine® XE Power Vent (200 series)
    Rated 4 out of 5 by from it works! happy with it, updated so a little different then what I'm used to - needed to have the company come back to make the water hotter. So far, no issues
    Date published: 2024-11-05
    Rated 4 out of 5 by from Good except a faulty gas valve I’m glad I bought it but it had a faulty gas valve
    Date published: 2024-09-22
    Rated 4 out of 5 by from 50 gall hot water heater. It was just installed yesterday and seemed easy for my plumber to install It has an ionizer bar to gather destructive particles in the water and prolong the life of the heater. I want to purchase an extended warranty.
    Date published: 2024-09-18
    Rated 4 out of 5 by from 50 gallon orange tag Works fine, it is commercial grade, which surprised me for a new home installation. Don't particularly like the screw on the drain valve instead of the usual spigot, though. Has been reliable for the first 15 months so far. Drains well.
    Date published: 2024-08-26
    Rated 4 out of 5 by from good water heater I bought through a plumbing contractor and he installed it.
    Date published: 2024-06-18
    Rated 4 out of 5 by from Good so far easy install, waters hot. -------------------------
    Date published: 2024-03-24
    Rated 4 out of 5 by from Water heater with power vent It's a good heater but a bit on the expensive side.
    Date published: 2023-10-20
    Rated 4 out of 5 by from Always have warm water Great water heater but started showing rust about 5 years in. Now at 8 years and definitely needs replacing. Pretty good considering it is only expected to last 6 years.
    Date published: 2022-11-16
    Rated 4 out of 5 by from Great product. My 1st State water heater lasted 16 years. This will be my 2nd State water heater I have had installed.
    Date published: 2022-10-06
    Rated 4 out of 5 by from Old water heater was a 22 year old A O Smith with similar features and this water heater hooked up easily with same venting, gas, and water layout as the old one. If this heater lasts 22 years it’s well worth the investment.
    Date published: 2022-08-08
    Rated 4 out of 5 by from I replaced my old State gas water heater with the same make & model. However, the old STate water heater only lasted 4 years. I went with the same plumber & this is the water heater that they carry. I'm not pleased with the old model not lasting & hopefully this new model will give me at least 10-15 years.
    Date published: 2022-06-23
    Rated 4 out of 5 by from Good Features and very expensive The product is performing very well. But it is very expensive. I needed two 50G units and cost me lots of money.
    Date published: 2022-05-30
    Rated 4 out of 5 by from So far so good We moved into our newly built house almost 2 months ago. So far hot water is fine and plentiful. The hot water heater was originally set at very high temperature. Once I learned how to adjust it and the temperature associated with the various settings, everything is fine.
    Date published: 2022-04-10
    Rated 4 out of 5 by from State 50 gallon power vent hot water tank Quiet and provides hot water. Too early to tell on other features.
    Date published: 2022-03-23
    Rated 4 out of 5 by from Water Heaters I had bought 3 State Hearters since we bought the house as follows: 1) Bought it on July 30, 2003. It lasted for 11 tears and needed a new one... Impressive! 2) Bought it on July 17, 2014. I expected it should last at least 10 years but it lasted less than 8 years. I was disappointed. Can you explain why the 2nd one only lasted only 7 years and 8 months? 3) Bought it on March 4, 2022 (today). I hope this one will last at least 10 years because I have paid lots of money. I still believe in your products, please don't fail me.
    Date published: 2022-03-04
    Rated 4 out of 5 by from Works great We installed it in late 2017. It has worked beautifully. Love it.
    Date published: 2022-01-01
    Rated 4 out of 5 by from Gas Water Heater Better Than Electric Water Heater Product has been work correctly for the past 48 hours.
    Date published: 2021-12-28
    Rated 4 out of 5 by from had to replace water heater after 9yrs. So far, everything is going well with this product. I hope it will last for long time, without any problems.
    Date published: 2021-10-16
    Rated 4 out of 5 by from Peace of mind. Since our old water heater began making noises, it was time for a repair or replacement. Decided on replacement for peace of mind that it would not give out and water will be all over the basement. Glad our plumber suggested this model, which he considered the best.
    Date published: 2021-02-15
    Rated 4 out of 5 by from Good DHW Good DHW heater but I feel the packaging is sub par. I install other brands and they are not nearly as loosely put in there my heater came dented due to it.
    Date published: 2020-09-21
    Rated 4 out of 5 by from Same as the one we already had. Just purchased. Haven't had it long enough to decide. Do like hotter water than old one.
    Date published: 2020-09-20
    Rated 4 out of 5 by from Energy wise, good name product Only had it one day. Looks like a quality product. It made hot water quickly.
    Date published: 2020-08-01
    Rated 4 out of 5 by from Quiet Had to have one the previous state water heater went out after eight years was disappointed but what can you do
    Date published: 2020-02-27
    Rated 4 out of 5 by from State Gas Hot Water Heater purchased this gas hot water heater to replace our faulty unit very please with the product it maintains the water temperature very well.
    Date published: 2020-02-25
    Rated 4 out of 5 by from So far so good. Plenty of hot water. Heats quickly Installed in a new home and it’s now 3 weeks (1/10/2020) old.
    Date published: 2020-01-27
    Rated 4 out of 5 by from works great installation was quick and the heater works great so far!
    Date published: 2019-09-14
    Rated 4 out of 5 by from Good quality Bought this item to replace the former State water heater . great quality and nice features
    Date published: 2019-06-21
    Rated 4 out of 5 by from After one year of service It does its job very well for a family of 4 that include 2 teenagers. However lately I have noticed that the water has been very hot even at lowest setting.
    Date published: 2019-05-24
    Rated 4 out of 5 by from So Far so good Replaced a 25+ year old State Water Heater. Have just installed so can not rate except as the performance of the replaced water heater of the same make
    Date published: 2019-05-15
    Rated 4 out of 5 by from keeps water hot on demand I am happy that we chose this heater, it works like a charm
    Date published: 2018-06-22
