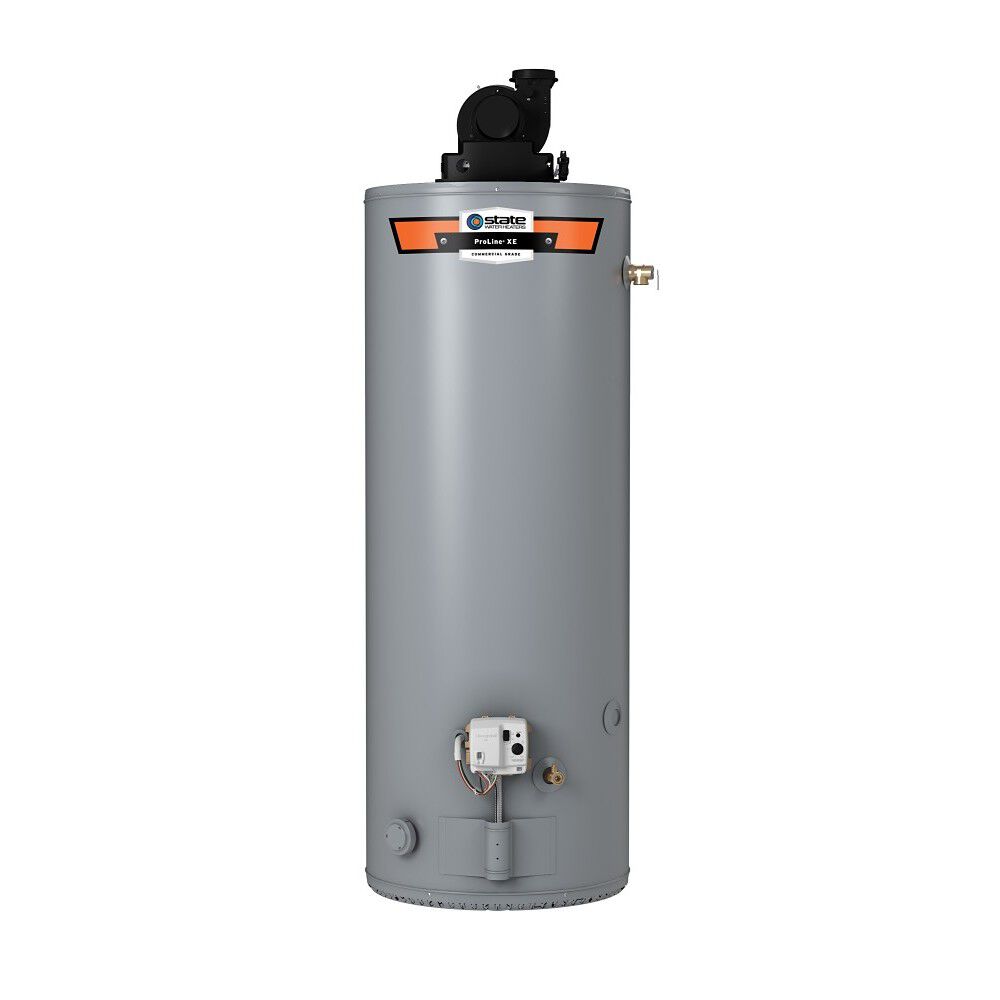

ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater

Model GS6-40-YRVITL 200
4.8 out of 5 Customer Rating
ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater is rated 4.6 out of 5 by 252.
  • y_2025, m_9, d_13, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_39, tr_213
  • loc_en_US, sid_gs6-40-yrvitl-200, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 16ms
  • reviews, product
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Meets Your Hot Water Demands—Delivers an 87-gallon first hour rating
  • Energy Efficient—50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater
    Model GS6-40-YRVITL 200
    4.8 out of 5 Customer Rating
    ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater is rated 4.6 out of 5 by 252.
    • y_2025, m_9, d_13, h_4
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_1, bvpage1
    • co_hasreviews, tv_39, tr_213
    • loc_en_US, sid_gs6-40-yrvitl-200, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 16ms
    • reviews, product
    Product Details
    • Meets Your Hot Water Demands—Delivers an 87-gallon first hour rating
    • Energy Efficient—50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® XE Power Vent Natural Gas Water Heater maximizes efficiency and provides flexible installation options by using an exclusive 3 position rotatable blower outlet. The GS6-40-YRVITL features a 40-gallon (nominal) tank and a 50,000 BTU gas burner to deliver a first-hour rating of 87 gallons and a recovery rate of 56 gallons per hour.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.

      The GS6-40-YRVITL features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.7
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Low NOx
    First Hour Rating
    87 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    71
    Shipping Length
    29.25
    Shipping Width
    21.63
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59.5"
    Diameter
    20"
    Shipping Weight
    176 lbs
    Vent Type
    Power Vent
    All Reviews for ProLine® XE Power Vent (200 series)
    Rated 5 out of 5 by from New water heater The water heater performed very well right off the bat. The only thing noticeable was a faint odor for a few days after the installation. Operation has been flawless for these past several months.
    Date published: 2025-08-11
    Rated 5 out of 5 by from This was an emergency purchase. The water heater in our home was leaking. George Champan from Gervais Mechanical was extremely professional and efficient with the installation. We’re looking forward to a good experience with your product. Mary Oliveri
    Date published: 2025-05-15
    Rated 5 out of 5 by from Great durability I had a State water heater that was replaced by this one. The old one lasted nearly 13 years which I think is great. I hope I will get the same amount of use with this one.
    Date published: 2025-02-12
    Rated 5 out of 5 by from Great product I bought this product and will cherish the services.
    Date published: 2025-02-08
    Rated 5 out of 5 by from Easy to install,Lots of quality here I really like these water heaters! Just got my third one.First one came with our new build house when we bought it in 06.Slid the next one in 2014 and now just replaced that water heater this morning.Easy job,push and pull because State has been very consistent with the blower and pipe tap location.Nice water heaters
    Date published: 2024-12-09
    Rated 5 out of 5 by from Connect to gas and water, fired right up. Easy. I just installed this 40 gallon hot water tank, this is the second State tank I’ve had , other than the oxygen sensor no problem for 10 years.
    Date published: 2024-10-18
    Rated 5 out of 5 by from It’s only been one day :) After one day, I’m totally happy. I’ll come back in 15 years and review again :)
    Date published: 2024-07-30
    Rated 5 out of 5 by from New Features More compact than previous unit. Easier to read settings and simple installation.
    Date published: 2024-07-09
