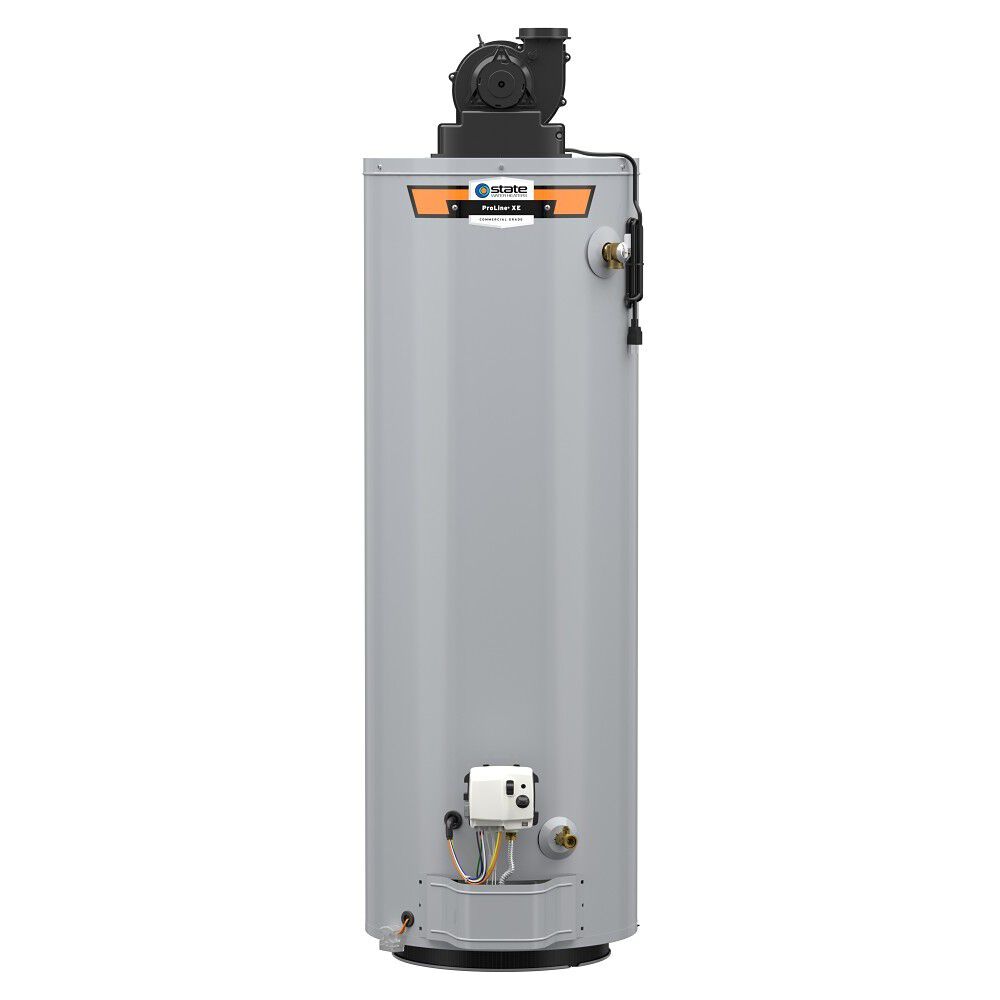

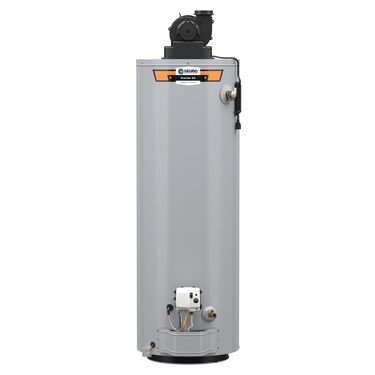

ProLine® XE Ultra-Low NOx 40-Gallon Power Vent Natural Gas Water Heater

Model GS6-40-UBPVT 100
Capacity (Gallons)

  • Meets Your Hot Water Demands—Delivers a 91-gallon first hour rating
  • Energy Efficient—42,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
  • Green Choice® Burner—Ultra-Low NOX Green Choice® gas burner meets or exceeds emission requirements in California & Utah
  • Product Details
    • Meets Your Hot Water Demands—Delivers a 91-gallon first hour rating
    • Energy Efficient—42,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
    • Green Choice® Burner—Ultra-Low NOX Green Choice® gas burner meets or exceeds emission requirements in California & Utah
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve that's factory-installed
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® XE 40-Gallon Ultra-Low NOx Power Vent Natural Gas Water Heater delivers efficient, reliable performance and is FVIR compliant. A protected sensor automatically disables the burner to protect against accidental ignition of flammable vapors.

      The GS6-40-UBPVT’s 40-gallon (nominal) tank and 42,000 BTU gas burner deliver a first hour rating of 91 gallons and a recovery rate of 42.6 gallons per hour. This ProLine® XE Power Vent model has a 0.72 Uniform Energy Factor and meets Ultra-Low NOx emission requirements.

      An electronic gas control provides more precise temperatures, and an LED control light indicates operation status and diagnostics information, making the GS6-40-UBPVT user-friendly and easy to operate. This model includes a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.72
    Maximum BTUs
    42,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Ultra-Low NOx
    First Hour Rating
    91 Gallons
    ASME Certified
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    70.8
    Shipping Length
    27
    Shipping Width
    21.8
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    20"
    Shipping Weight
    143lbs
    Vent Type
    Power Vent
