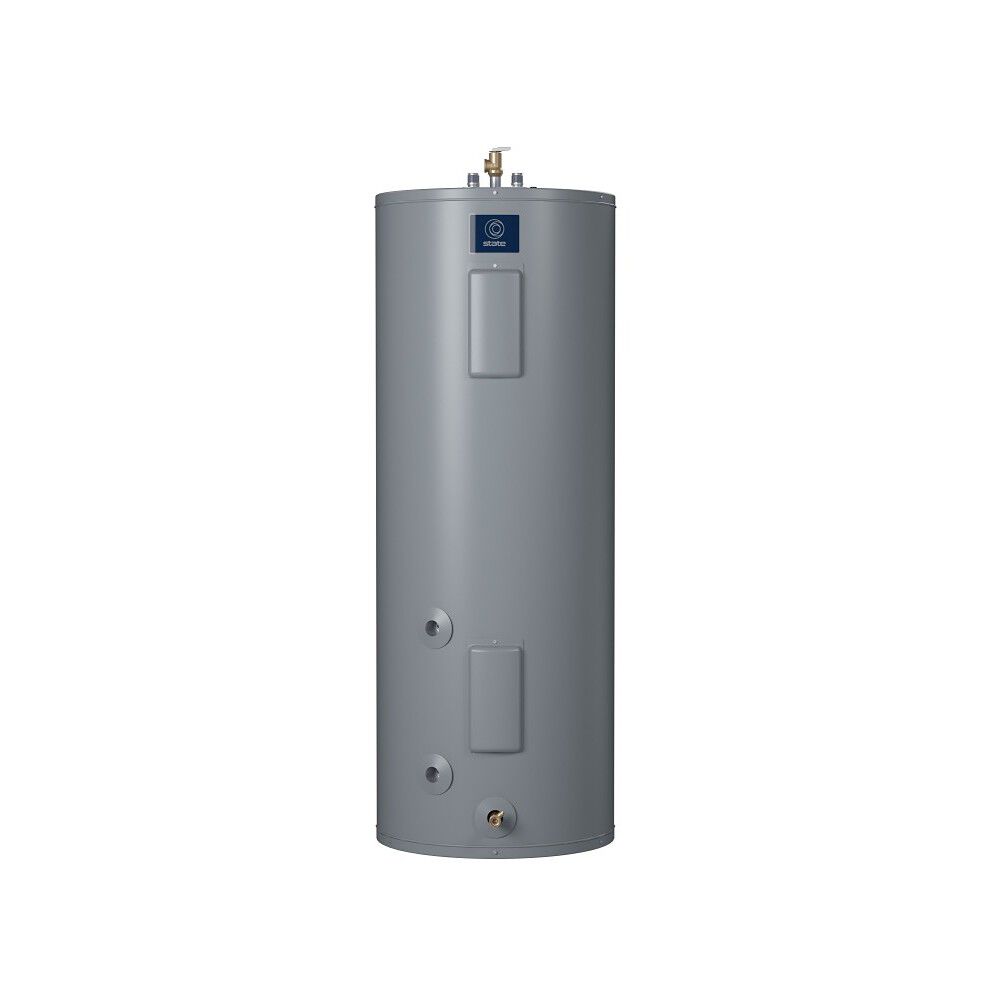

State Select 119-Gallon Geothermal Solar Storage Tank

Model SGV-120-1OTS 110
Capacity (Gallons)

  • Available in 80-gallon and 119-gallon sizes to meet varying hot water needs
  • 4500-watt Sandhog Low-Watt Density Incoloy Steel Heating Element
  • 6-year limited warranty for tank and parts
  • Product Details
    • Available in 80-gallon and 119-gallon sizes to meet varying hot water needs
    • 4500-watt Sandhog Low-Watt Density Incoloy Steel Heating Element
    • 6-year limited warranty for tank and parts
    • 1" top or 1.5" side recirculating connections for outgoing and incoming water
    • Easy Installation—Flexible connection options simplify setup for geothermal systems
    • Consistent Hot Water Supply—Provides reliable hot water 24/7 for residential or commercial use
    • Primary and secondary aluminum anode rods for superior corrosion protection
    • Enhanced Water Quality—Diffuser dip tube minimizes sediment buildup for cleaner, more efficient hot water output
    • Safety and Reliability—Factory-installed T&P relief valve and tamper-resistant components
    • Long-Lasting Performance—Durable heating element and corrosion-resistant design ensure extended product life

    • State Water Heaters' Geothermal Storage Tanks are designed to provide consistent water temperature and a reliable hot water supply. ?Available in 80-gallon and 119-gallon capacities, these energy-efficient tanks are equipped with advanced features to ensure durability, flexibility, and optimal performance.

      Key features include a 4500-watt Sandhog Low-Watt Density Incoloy Steel Heating Element, which lasts 2-3 times longer than standard copper elements, and 2"-thick foam insulation for superior energy efficiency. The tanks feature glass lined construction with two anode rods for maximum corrosion protection and a diffuser dip tube to reduce lime and sediment buildup, enhancing hot water output.

      Installation is made easy with 1" top or 1.5" side recirculating connections, allowing flexibility for outgoing and incoming water connections. Additional features include a durable brass tamper-resistant drain valve and a factory-installed temperature and pressure relief valve. With a 6-year limited tank and parts warranty, these tanks are built to last and deliver reliable performance for geothermal systems.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    119 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Application
    RESIDENTIAL
    Shipping Height
    66.38
    Shipping Length
    30
    Shipping Width
    30
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Diameter
    28"
    Shipping Weight
    312lbs
