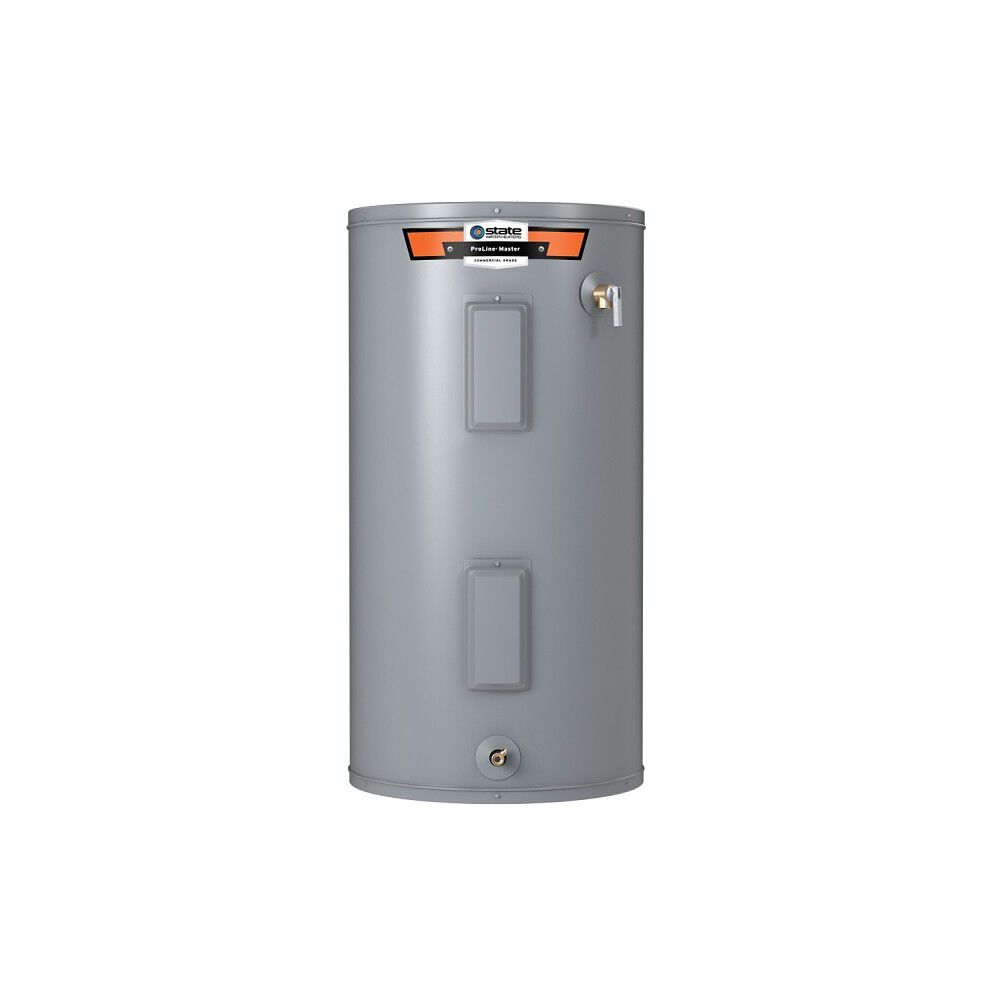

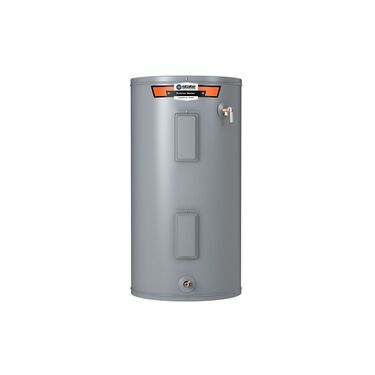

ProLine Master® 40-Gallon Electric Water Heater

Model EN8-40-DORS 110
4 out of 5 Customer Rating
ProLine Master® 40-Gallon Electric Water Heater is rated 4.8 out of 5 by 28.
  • y_2025, m_9, d_15, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_23
  • loc_en_US, sid_en8-40-dors-110, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 60ms
  • reviews, product
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Blanket
First Hour Rating

  • Durable Heating Elements—Long-lasting upper and lower 4,500-watt Incoloy™ heating elements deliver reliable and efficient hot water
  • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
  • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion

    • ProLine Master® 40-Gallon Electric Water Heater
    Model EN8-40-DORS 110
    4 out of 5 Customer Rating
    ProLine Master® 40-Gallon Electric Water Heater is rated 4.8 out of 5 by 28.
    • y_2025, m_9, d_15, h_6
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_1, bvpage1
    • co_hasreviews, tv_5, tr_23
    • loc_en_US, sid_en8-40-dors-110, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 60ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Durable Heating Elements—Long-lasting upper and lower 4,500-watt Incoloy™ heating elements deliver reliable and efficient hot water
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • HUD Compliant—Approved for use in mobile homes/manufactured housing
    • Peace of Mind—8-year limited tank and parts warranty for added peace of mind

      • The ProLine® Master Standard Electric water heater with top water connections is the reliable choice when you want to maximize hot water output and energy savings. The EN8-40-DORS incorporates a 40-gallon (nominal) tank and dual 4,500-watt elements to deliver a first hour rating of 55 gallons at a highly efficient 0.92 Uniform Energy Factor rating.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® Master water heater includes State's superior commercial-grade tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. The EN8-40-DORS includes an 8-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    37 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    55 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    40.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    53.63
    Shipping Length
    23.69
    Shipping Width
    21.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    49.75"
    Diameter
    20.5"
    Width
    20.5"
    Shipping Weight
    98 lbs
    Maintenance & Troubleshooting
    Maintenance

    Electric - Adjusting the Thermostat

    Electric - Checking and Replacing Lower Heating Element

    Electric - Checking and Replacing Upper Heating Element

    Electric - Not Enough Hot Water

    Electric - Replacing the Lower Thermostat

    Electric - Replacing the Upper Thermostat

    Troubleshooting

    Electric - No Hot Water

    Electric - Tripped ECO

    Marketing Videos
    Electric - Application and Installation
    Electric - Features and Benefits
    Electric - How It Works
    All Reviews for ProLine® Master Standard Electric (110 series)
    Rated 5 out of 5 by from High Quality, full feature Water heater comes well packaged, with Dielectric nipples and in perfect condition
    Date published: 2023-09-17
    Rated 5 out of 5 by from Large capacity Just purchased today. am pleased with performance so far. Second one of this brand that I have hadm
    Date published: 2023-07-31
    Rated 5 out of 5 by from Solid build I bought this to replace a 17 year old A.O Smith which was working fine, but at the end of its useful life. I'm hoping that this new unit will lower my electricity bill. Initially the water temperature was too hot. Plumber came back and adjusted the temperature control setting to the factory recommended setting per the Owner's Manual. Perfect temp. now.
    Date published: 2023-06-26
    Rated 5 out of 5 by from Great water heater! Have been very happy with how this product has worked! Hot water always available on demand! No complaints!
    Date published: 2023-02-03
    Rated 5 out of 5 by from Great water heater! Was installed by my builder for my new home! I am very happy with their choice!
    Date published: 2022-11-28
    Rated 5 out of 5 by from Very Efficient and Has A Great Look Truly An Excellent Choice After My Previous Water Heater Stopped Working...
    Date published: 2021-02-26
    Rated 5 out of 5 by from Long Life This water heater replaced the same model that lasted over twice as long (14-years) as the warranty (6-year) so I have been pleased with their product.
    Date published: 2020-07-21
    Rated 5 out of 5 by from Quick response from Mr. Rooter Has only been installed for about two hours. All seems fine with a quick warm-up/
    Date published: 2020-04-20
