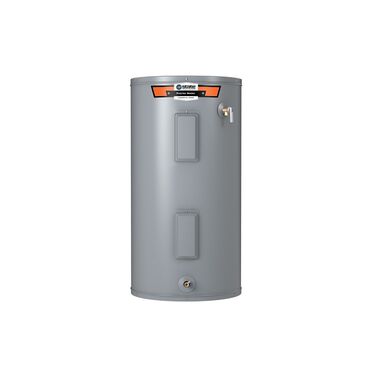

ProLine Master® 40-Gallon Electric Water Heater

Model EN8-40-DORS 110
4 out of 5 Customer Rating
ProLine Master® 40-Gallon Electric Water Heater is rated 4.8 out of 5 by 28.
  • y_2025, m_9, d_15, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_2, bvpage2n
  • co_hasreviews, tv_5, tr_23
  • loc_en_US, sid_en8-40-dors-110, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 54ms
  • reviews, product
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Blanket
First Hour Rating

  • Durable Heating Elements—Long-lasting upper and lower 4,500-watt Incoloy™ heating elements deliver reliable and efficient hot water
  • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
  • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion

    • ProLine Master® 40-Gallon Electric Water Heater
    Model EN8-40-DORS 110
    4 out of 5 Customer Rating
    ProLine Master® 40-Gallon Electric Water Heater is rated 4.8 out of 5 by 28.
    • y_2025, m_9, d_15, h_6
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_2, bvpage2n
    • co_hasreviews, tv_5, tr_23
    • loc_en_US, sid_en8-40-dors-110, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 54ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Durable Heating Elements—Long-lasting upper and lower 4,500-watt Incoloy™ heating elements deliver reliable and efficient hot water
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • HUD Compliant—Approved for use in mobile homes/manufactured housing
    • Peace of Mind—8-year limited tank and parts warranty for added peace of mind

      • The ProLine® Master Standard Electric water heater with top water connections is the reliable choice when you want to maximize hot water output and energy savings. The EN8-40-DORS incorporates a 40-gallon (nominal) tank and dual 4,500-watt elements to deliver a first hour rating of 55 gallons at a highly efficient 0.92 Uniform Energy Factor rating.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® Master water heater includes State's superior commercial-grade tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. The EN8-40-DORS includes an 8-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    37 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    55 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    40.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    53.63
    Shipping Length
    23.69
    Shipping Width
    21.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    49.75"
    Diameter
    20.5"
    Width
    20.5"
    Shipping Weight
    98 lbs
    Maintenance & Troubleshooting
    Maintenance

    Electric - Adjusting the Thermostat

    Electric - Checking and Replacing Lower Heating Element

    Electric - Checking and Replacing Upper Heating Element

    Electric - Not Enough Hot Water

    Electric - Replacing the Lower Thermostat

    Electric - Replacing the Upper Thermostat

    Troubleshooting

    Electric - No Hot Water

    Electric - Tripped ECO

    Marketing Videos
    Electric - Application and Installation
    Electric - Features and Benefits
    Electric - How It Works
    All Reviews for ProLine® Master Standard Electric (110 series)
    Rated 5 out of 5 by from Easy Install Straight forward installation. Replaced old hot water heater with this replacement I had stored knowing that my old hot water heater days were numbered. Replaced it one Saturday afternoon while the wife was out shopping.
    Date published: 2020-01-26
    Rated 5 out of 5 by from Hot Water It seems like I never run out of hot water any more.
    Date published: 2019-06-27
    Rated 5 out of 5 by from great features just had installed so not much I can say, appearance is very nice and warranty is good
    Date published: 2019-06-15
    Rated 5 out of 5 by from Energy efficient ans works great! This product was installed in our new home build. We are very satisfied on how quickly it heats ad the ease of draining and refilling.
    Date published: 2019-05-24
    Rated 5 out of 5 by from Excellent Water Heater I purchased this yesterday. I wanted a water heater without all of the electronics, thus fewer items to go wrong. And, I really do not need the apps to control the temperature. It was easily installed by the contractor in about an hour. I easily set up the temp from the factory setting of 120 to 130 in both heater elements.
    Date published: 2019-05-17
    Rated 5 out of 5 by from It was just installed today. I noticed the date of manufacture was 2 yrs ago in 2017. That concern me. I would like to know if the newer ones are improved over the one I purchased. It just makes me concern that the place I purchased it didn't do the first in first out practice. Please let me know if this model has been improved. thanks.
    Date published: 2019-03-27
    Rated 5 out of 5 by from Quality unit! Very satisfied with the performance and recovery rate. Our family of 4 finally have enough hot water! Highly recommend this unit. Great warranty too.
    Date published: 2017-12-21
    Rated 5 out of 5 by from Very Pleased With 2 adults & a daughter (short time), the new water heater provides plenty of hot water for evening showers.
    Date published: 2017-10-05
    Rated 5 out of 5 by from Wonderful Hot Water It works beautifully. I have hot water when I need it for as long as I need it.
    Date published: 2017-06-23
    Rated 5 out of 5 by from Easy to Install, simple design Bought this after having great difficulty with prior water heater repair, turned out to be a bad fuse, but now we have a new water heater! Oh well, the other one was old anyway, you live and you learn.
    Date published: 2017-04-14
    Rated 4 out of 5 by from Everything looks nice We just had it put in, so we have not had a chance to use it. But Colonial Plumbing tells us it is on of there top of the line hot water heater that they install.
    Date published: 2022-07-13
    Rated 4 out of 5 by from Great size I moved in with this installed and the water is great temperature and lasts forever.
    Date published: 2018-11-04
    Rated 4 out of 5 by from So far - so good... Just bought and installed it myself only 1 week ago. Was an extremely easy swap out of an older A.O. Smith 50 gal tank. So far so good. I try to do all my own home maintainance/repair, and this was a simple install! I bought this from a plumbing distributor I occasionally use on the advice of the counterperson Dave Gibson - I'm very happy with his suggestion!
    Date published: 2017-12-04
    Rated 4 out of 5 by from Quickly heated the water in the tank Just installed today, the contractor did a quick but satisfactory job. I am disappointed that the nomenclature label regarding model, serial number, etc. was at the bottom of the tank cover rather than at eye level. As a senior citizen, it was difficult for me to access and record the information
    Date published: 2017-05-16
    Rated 4 out of 5 by from Electric Water Heater Replacement This unit replaces an older State Water Heater. The older unit lasted only 4 years. Hopefully this newer unit will last longer.
    Date published: 2017-04-20
