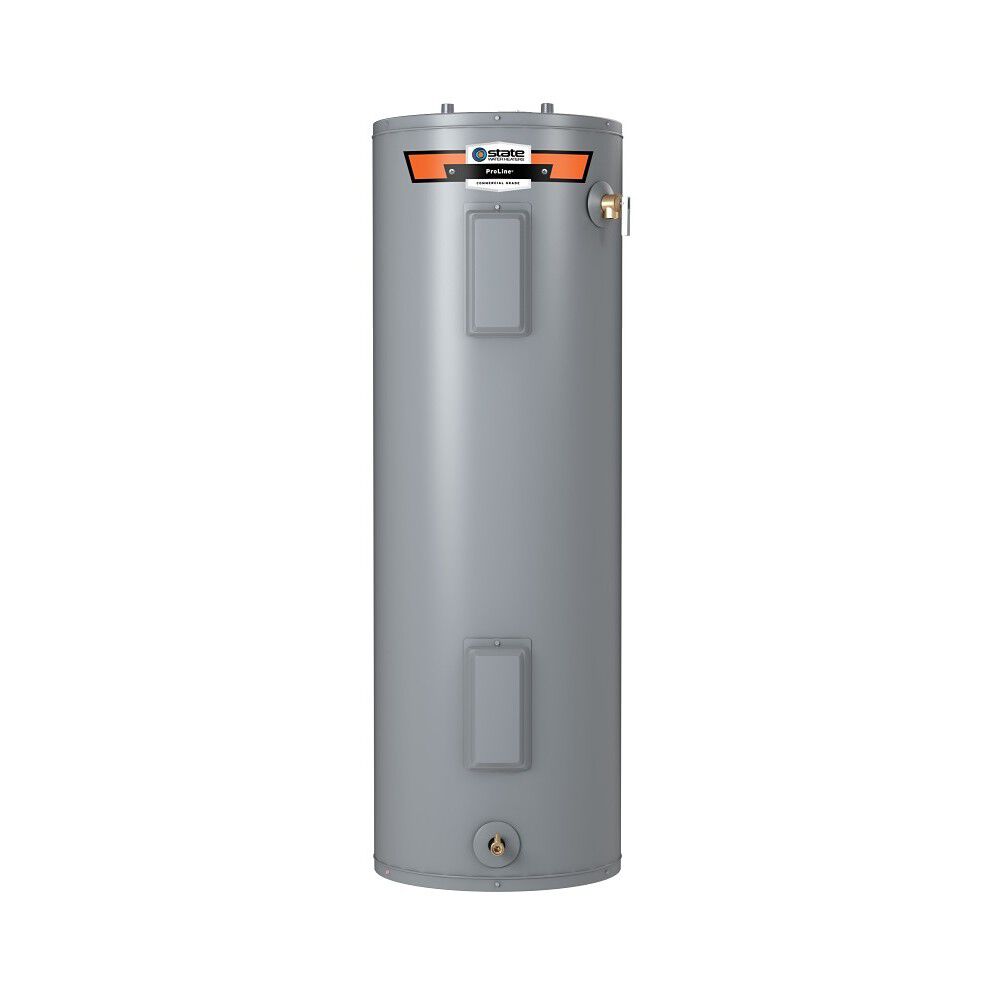

ProLine® 30-Gallon Electric Water Heater

Model ESX-30-DONT 100
5 out of 5 Customer Rating
ProLine® 30-Gallon Electric Water Heater is rated 4.6 out of 5 by 101.
  • y_2025, m_9, d_13, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_21, tr_80
  • loc_en_US, sid_esx-30-dont-100, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_statewaterheaters
  • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 52ms
  • reviews, product
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Blanket
First Hour Rating

  • Steady Hot Water—Delivers 48 gallons of hot water in the first hour
  • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Sturdy Build—Long-lasting lower Incoloy™ stainless steel element

    • ProLine® 30-Gallon Electric Water Heater
    Model ESX-30-DONT 100
    5 out of 5 Customer Rating
    ProLine® 30-Gallon Electric Water Heater is rated 4.6 out of 5 by 101.
    • y_2025, m_9, d_13, h_4
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_1, bvpage1
    • co_hasreviews, tv_21, tr_80
    • loc_en_US, sid_esx-30-dont-100, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_statewaterheaters
    • bvseo_sdk, dw_cartridge, 21.1.0, p_sdk_3.2.0
    • CLOUD, getAggregateRating, 52ms
    • reviews, product
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Steady Hot Water—Delivers 48 gallons of hot water in the first hour
    • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Sturdy Build—Long-lasting lower Incoloy™ stainless steel element
    • HUD Compliant—Approved for use in mobile homes/manufactured housing
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • Peace of Mind—10-year limited tank and parts warranty for added peace of mind

      • The State ProLine® Standard Electric water heater is the reliable choice when you want to maximize hot water output and energy savings. The ESX-30-DONT incorporates a 30-gallon (nominal) tank and dual 4,500-watt elements to deliver a first hour rating of 48 gallons at a Uniform Energy Factor of 0.89.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss to optimize energy savings.

      This ProLine® water heater features State's advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. The ESX-30-DONT includes a 10-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    30 Gallons
    Rated Storage Volume
    27 Gallons
    UEF
    0.89
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    48 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    19.00
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    50.5
    Shipping Length
    23.25
    Shipping Width
    20.63
    Side Loop
    No
    Voltage
    208
    Dimension & Venting
    Type
    Water Heater
    Height
    46.5"
    Diameter
    19"
    Shipping Weight
    98 lbs
    Maintenance & Troubleshooting
    Maintenance

    Electric - Adjusting the Thermostat

    Electric - Checking and Replacing Lower Heating Element

    Electric - Checking and Replacing Upper Heating Element

    Electric - Not Enough Hot Water

    Electric - Replacing the Lower Thermostat

    Electric - Replacing the Upper Thermostat

    Troubleshooting

    Electric - No Hot Water

    Electric - Tripped ECO

    Marketing Videos
    Electric - Application and Installation
    Electric - Features and Benefits
    Electric - How It Works
    All Reviews for ProLine® Standard Electric (100 series)
    Rated 5 out of 5 by from Great 55 gallon water heater Very happy with this water heater. everything i wanted.
    Date published: 2024-11-16
    Rated 5 out of 5 by from perfect waterheater for my house real easy to install @ good price perfect fit worksgreat
    Date published: 2024-10-20
    Rated 5 out of 5 by from Quality Products across the Line-Made in the USA This is our third State water heater in this home over 37 years. We had it professionally installed by the same local company that installed the last two. Each new unit is better than the previous. It's an old saying.....but with State you get what you pay for. We rest assured that our new State will do what it is supposed to...no compromises. Thank you to the proud Americans that made our unit.
    Date published: 2024-09-16
    Rated 5 out of 5 by from Great product failed I was happy when I bought this product but like all mechanical products unfortunately mines failed.
    Date published: 2024-08-08
    Rated 5 out of 5 by from Excellent 50 Gallon Water Heater We bought this water heater on 4/11/24 and had a professional plumber install it. No problems so far. We have not run out of hot water yet, even with guests taking showers one after another (3 in a row).
    Date published: 2024-07-06
    Rated 5 out of 5 by from Just installed but recommended by plumber with size needed.
    Date published: 2024-06-24
    Rated 5 out of 5 by from this product came with the condo I purchased from Neat design. it came with the condo I purchased from builder Stanley Martin.
    Date published: 2024-05-06
    Rated 5 out of 5 by from Special purchase I bought on 1/4/24 and was installed same day.Glad I did and very happy .
    Date published: 2024-01-04
