Adapt® Premium Condensing Ultra-Low NOx 199,000 BTU Natural Gas Commercial Tankless Water Heater

Model SCTH-199M 100
X3® Scale Prevention Technology
Maximum BTU's
Fuel Source

  • ENERGY STAR® certified with a UEF up to 0.95
  • 199,000 BTU input
  • Maximum flow rate of 10.5 GPM
  • Adapt® Premium Condensing Ultra-Low NOx 199,000 BTU Natural Gas Commercial Tankless Water Heater
    Model SCTH-199M 100
    Product Details
    • ENERGY STAR® certified with a UEF up to 0.95
    • 199,000 BTU input
    • Maximum flow rate of 10.5 GPM
    • Flexible venting with PVC, CPVC, Polypropylene, or ABS Pipe (solid core only)
    • Common vent up to 12 units
    • Ultra Low NOx – Complies with SCAQMD Rule 1146.2
    • Temperature range 100 F (38°C) - 185°F (85°C); Default 140 F (60°C)
    • Cascade up to 32 units with single cable per heater, cable included
    • Outdoor rated power cord standard on every unit
    • 8-year limited warranty on the heat exchanger

    • The SCTH-199M Adapt® Premium condensing commercial gas tankless water heater uses up to 199,000 BTUs of Natural Gas to deliver a max flow rate of 10.5 gal/min. State’s Adapt® Premium condensing gas tankless water heater delivers robust, on-demand performance and the flexibility to install in virtually any commercial setting.

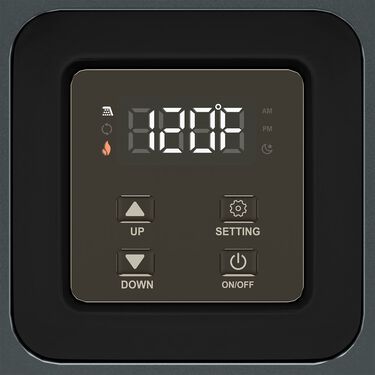

      Optional X3® Scale Prevention Technology helps maintain like-new performance by protecting the heat exchanger from build-up. The Adapt® line features a built-in Control Display for checking heater status and error codes. Manage temperature settings and activate the heater and recirculation pump remotely with optional kits (sold separately).

      All models are ENERGY STAR® certified with a Uniform Energy Factor of 0.95 and comply with Ultra-Low NOx regulations. All Adapt® models can be installed indoors or outdoors with an Outdoor Vent Cap Kit (sold separately).

      Common vent up to 12 heaters or cascade up to 32 heaters together for larger applications requiring multiple water heaters to work in conjunction, cable included. Enjoy peace of mind with an 8-year limited warranty on the heat exchanger in commercial applications.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    2
    Destination Country
    US
    ENERGY STAR® Certified
    Yes
    Flue Diameter
    2.00
    Fuel Source
    NATURAL
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    BOTH
    Limited Heat Exchanger Warranty
    8 Years
    GPM (@67 F Temp Rise)
    5.8 GPM
    Minimum BTUs
    9,000
    Application
    COMMERCIAL
    Shipping Height
    21
    Shipping Length
    39.75
    Shipping Width
    22
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    33.8"
    Width
    16.5"
    Shipping Weight
    117 lbs
    Vent Material
    PVC, CPVC OR PP
