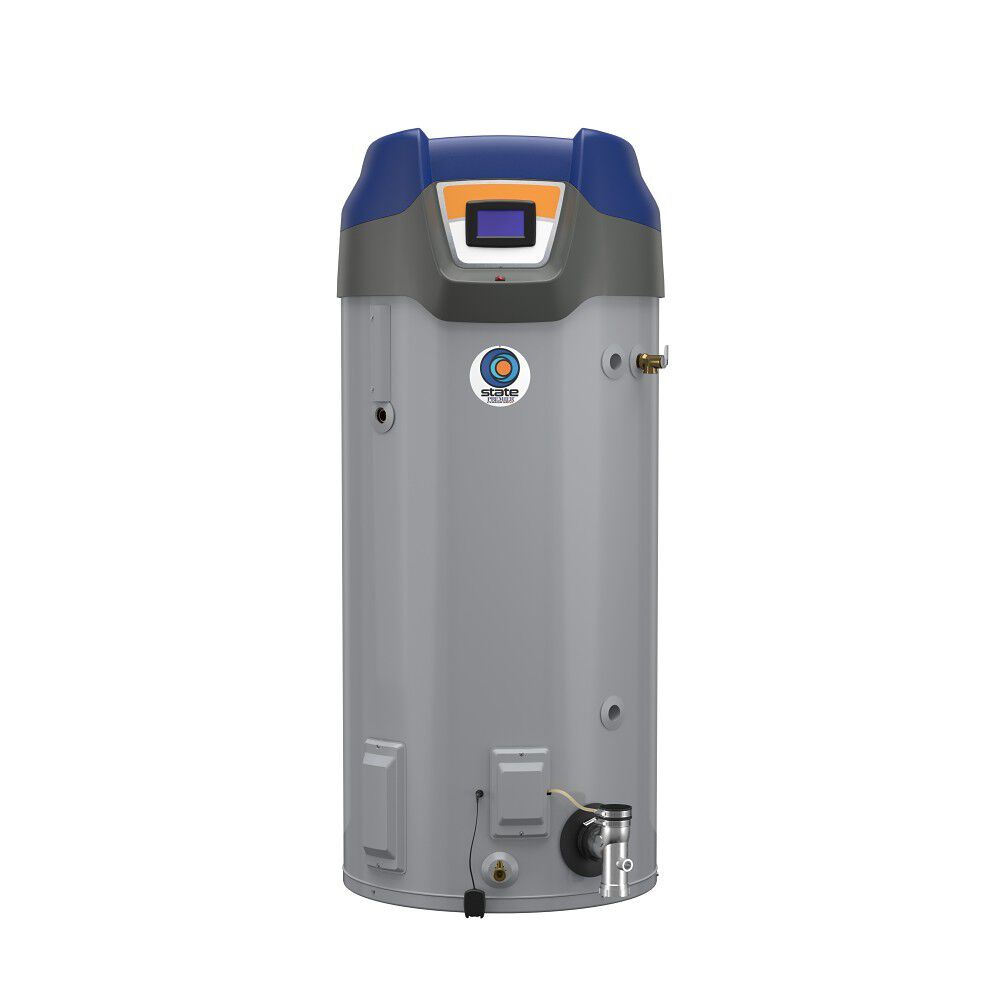

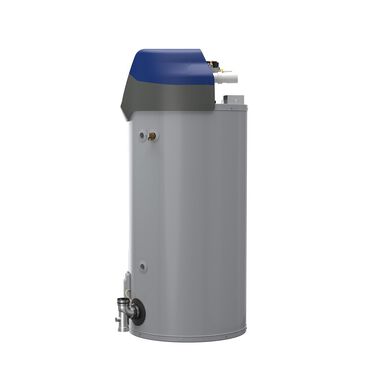

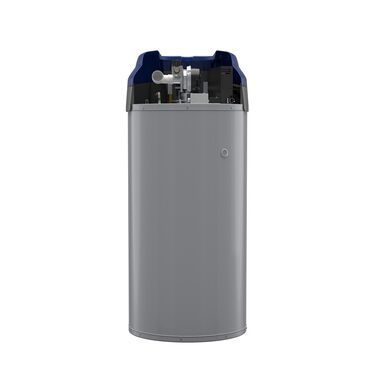

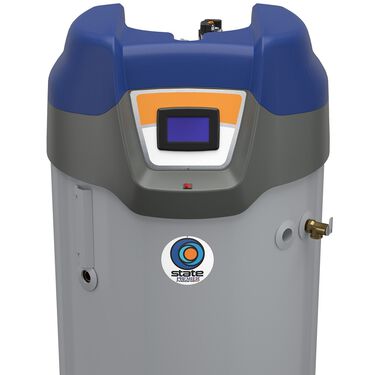

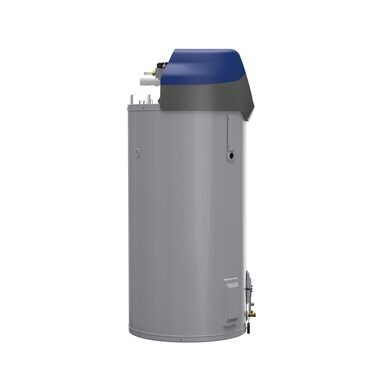

Premier® Force™ 90+ Ultra-Low NOx 75-Gallon Power Direct Vent Condensing Water Heater

Model GP8-75-MTPDT 400
Capacity (Gallons)
Fuel Source

  • ENERGY STAR® certified power direct vent design delivers up to 0.86 Uniform Energy Factor (96% Thermal Efficiency)
  • Delivers 150-gallon first hour rating
  • AiQ - Adaptive Gas Technology allows you to select Natural Gas or Liquid Propane during installation
  • Premier® Force™ 90+ Ultra-Low NOx 75-Gallon Power Direct Vent Condensing Water Heater
    Model GP8-75-MTPDT 400
    Product Details
    • ENERGY STAR® certified power direct vent design delivers up to 0.86 Uniform Energy Factor (96% Thermal Efficiency)
    • Delivers 150-gallon first hour rating
    • AiQ - Adaptive Gas Technology allows you to select Natural Gas or Liquid Propane during installation
    • Advanced high efficiency condensing design delivers energy savings & continuous hot water at a constant flow of over 4 gallons per minute
    • Helical coil internal heat exchanger lengthens heat transfer cycle and reduces lime & scale build-up to maintain high efficiency operation

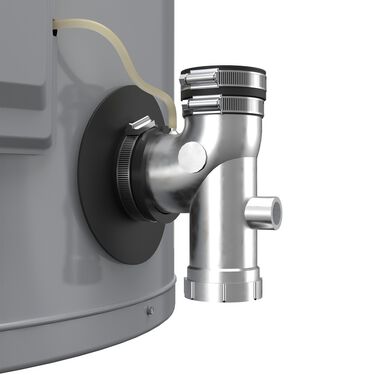

    • Power direct vent design installs with 2" or 3" PVC, CPVC or polypropylene pipe terminating through outside wall
    • Top fired Ultra-Low NOX gas burner, meets or exceeds emission requirements in California & Utah
    • Push-button piezo ignitor makes lighting pilot fast & easy

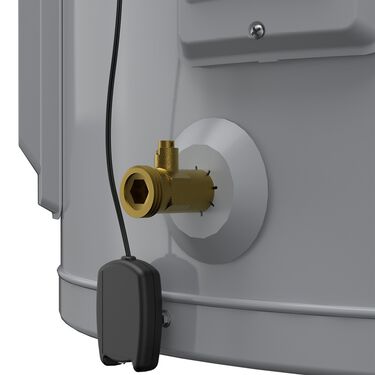

    • Protected by a CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system for long life
    • 8-year limited tank and parts warranty

    • The Premier® Force™ 90+ 75-Gallon Ultra-Low NOx Power Direct Vent Natural Gas Water Heater offers unprecedented levels of performance to meet your hot water needs. Featuring a 75-gallon (nominal) tank and an AiQ - Adaptive Gas Technology allows you to select Natural Gas or Liquid Propane during installation, the GP8-75-MTPDT 400 series Power Direct Vent delivers a thermal efficiency of 96%, a Uniform Energy Factor of 0.86, and a recovery rate of 150 gallons per hour. It carries a 8-year limited warranty, and meets Ultra-Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This Premier® Force™ 90+ water heater is designed with State's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. State’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    75 Gallons
    Rated Storage Volume
    73.9 Gallons
    UEF
    0.86
    Thermal Efficiency
    96%
    Maximum BTUs
    100,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years

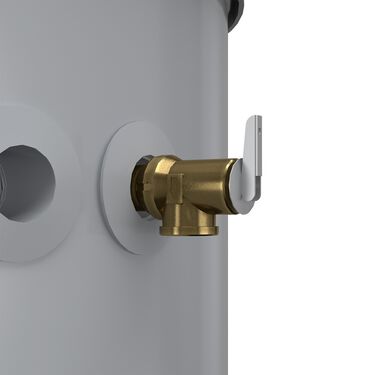

    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    130 Gallons
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    ENERGY STAR® Certified
    Yes
    Fuel Source
    MULTIPLE
    Height to T&P
    45.62
    Installation Type
    INDOOR
    Minimum BTUs
    100,000
    Application
    RESIDENTIAL
    Shipping Height
    76
    Shipping Length
    37
    Shipping Width
    34
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    65.25"
    Diameter
    27.75"
    Shipping Weight
    388 lbs
    Vent Type
    Power Direct Vent
    Height to Gas Valve
    60"
