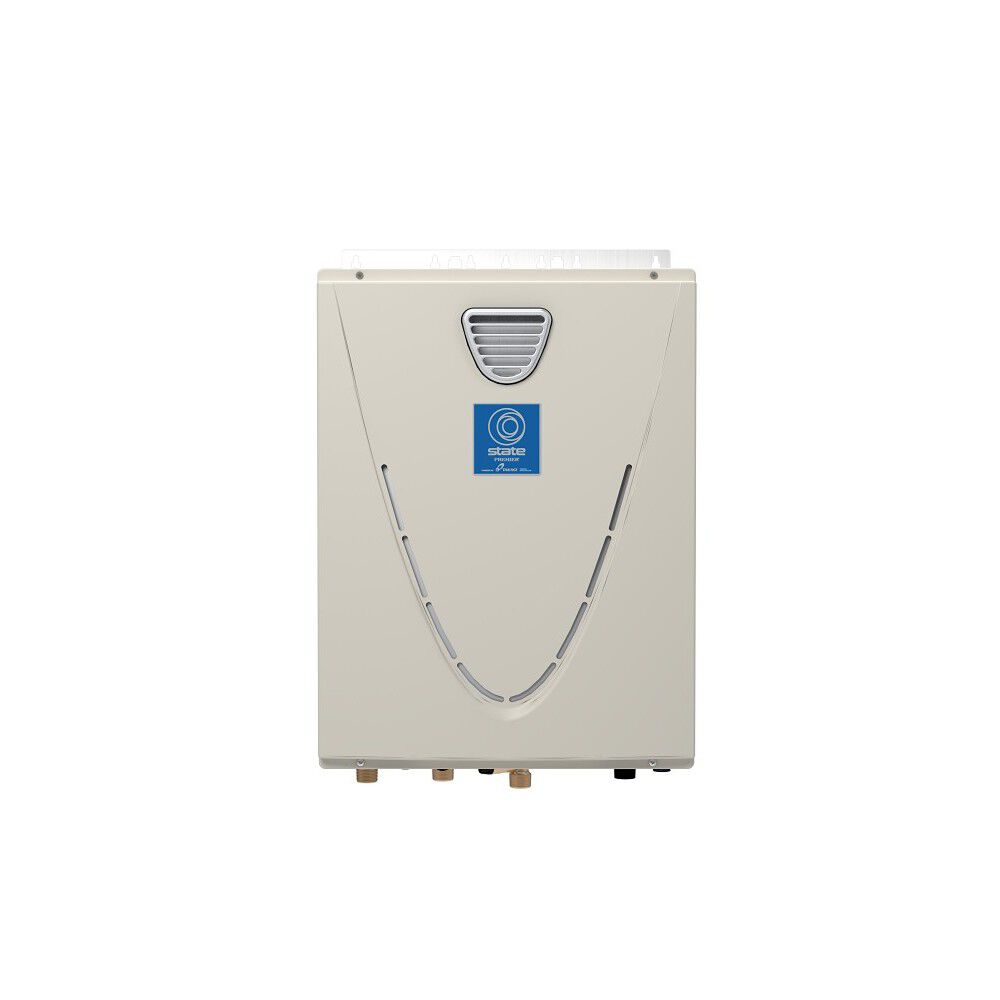

ProLine® XE Outdoor 160,000 BTU Condensing Natural Gas Tankless Water Heater

Model GTS-240-NEH 100
5 out of 5 Customer Rating
Installation Type
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified with a UEF of 0.95
  • Continuous Hot Water—Continuous flow rate of hot water of up to 6.6 GPM
  • Optimized Heat Transfer—Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quickly
  • Product Details
    • ENERGY STAR® certified with a UEF of 0.95
    • Continuous Hot Water—Continuous flow rate of hot water of up to 6.6 GPM
    • Optimized Heat Transfer—Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quickly
    • Corrosion Protection—Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
    • Flexible Venting—Flexible power direct vent design allows for venting up to 100 feet using either PVC, CPVC, polypropylene or ABS Pipe (solid core)
    • Shared Vent for Multiple Units—Common vent up to 8 units
    • Simple Control & Troubleshooting—Integrated temperature controls and advanced diagnostics make it easy to adjust settings and troubleshoot problems
    • Safety Features—Added safety features include a flame sensor, temperature monitoring, and an overheat cutoff fuse
    • Peace of Mind—Industry-leading 15-year limited warranty on heat exchanger in residential applications

    • The State ProLine® XE GTS-240-NEH Outdoor Tankless High Efficiency Condensing water heater uses up to 160,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 2-bath home in northern climates and a 3-bath home in southern climates (one shower head per bath).

      ENERGY STAR® certified, this Ultra-Low NOx model with condensing technology has a Uniform Energy Factor of 0.95 and meets the ASHRAE 90.1b-1992 energy efficiency requirements, making it environmentally friendly and reducing operating costs.

      The GTS-240-NEH uses copper primary and 316L stainless steel for the heat exchanger tubing to provide high efficiency operation and excellent corrosion resistance. Remote control is included as a standard feature on all outdoor models. Indoor models are certified up to a 10,100 ft. altitude.

      The GTS-240-NEH tankless condensing water heater provides years of hot water through innovation and quality and is backed by an industry-leading 15-year limited warranty.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    160,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    LEED Rating
    1.50
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Fuel Source
    NATURAL
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    4.70
    Minimum BTUs
    15,000.00
    Application
    RESIDENTIAL
    Shipping Height
    33.25
    Shipping Length
    21.75
    Shipping Width
    15.625
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    23.63"
    Width
    17.75"
    Shipping Weight
    69lbs
    Vent Type
    Power Direct Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE Outdoor 160,000 BTU Condensing Natural Gas Tankless Water Heater
    ProLine® XE Outdoor 180,000 BTU Condensing Natural Gas Tankless Water Heater
    GTS-240-NEH
    GTS-340-NEH
    Rebates up to $300 +
    Rebates up to $300 +
    Width
    17.75"
    17.75"
    Depth
    11.25"
    11.25"
    Height
    23.63"
    23.625"
    Shipping Weight
    69lbs
    69lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    0 Years
    0 Years
    Limited Parts Warranty
    5 Years
    5 Years
    Water Connection Location
    BOTTOM
    BOTTOM
    Water Connection Size
    0.75"
    0.75"
    Thermal Efficiency
    0%
    0%
